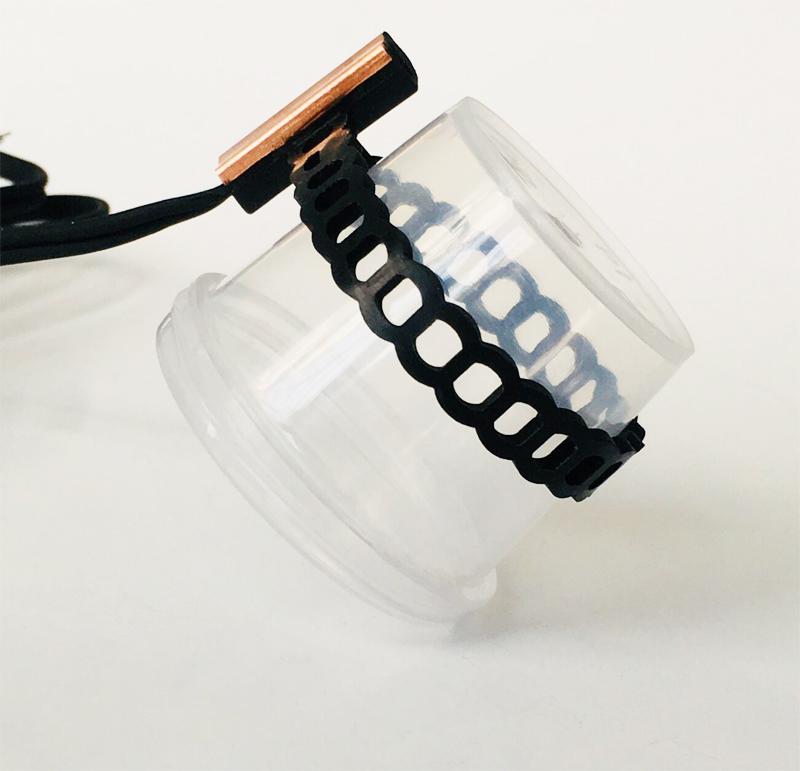

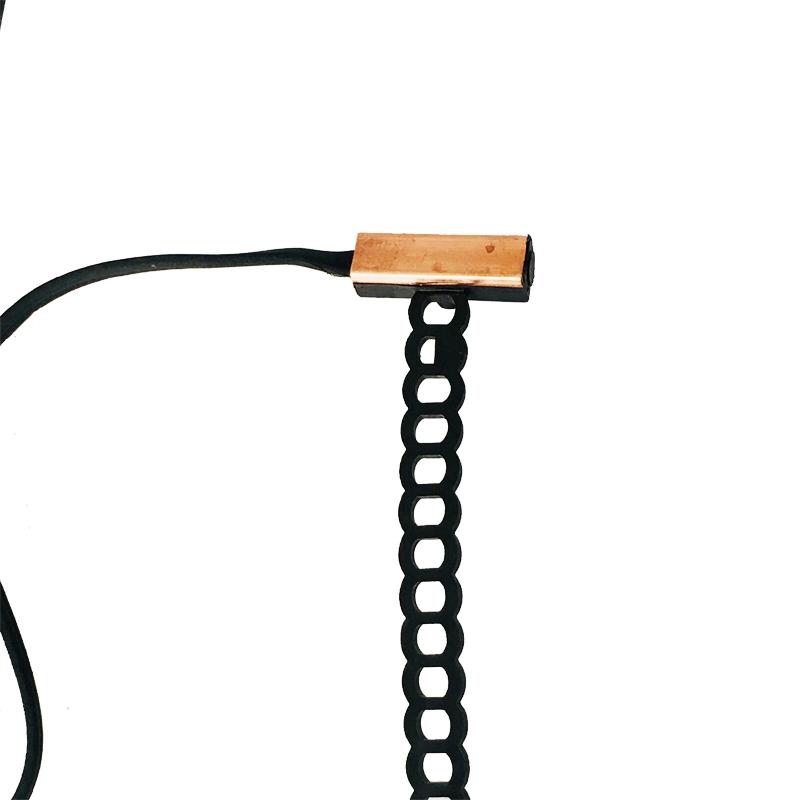

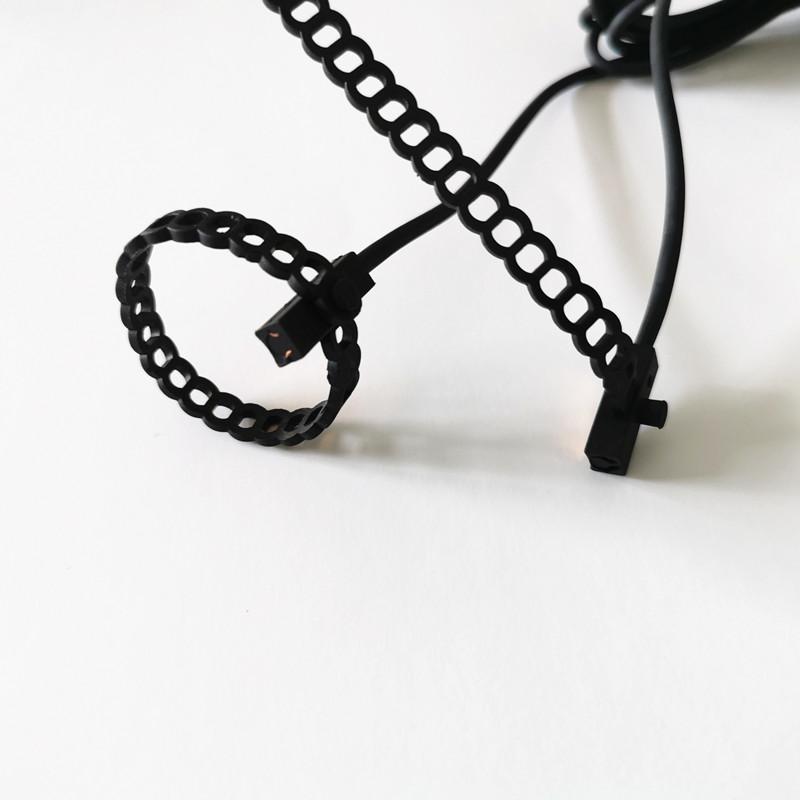

MFE1D series pipe clamp temperature sensor have intergral probe and body , which is overmoulded with good waterproof performance thermoplastic materials . It have a standard 110mm length adjustable chain , extra chains can be added to extend the length when it is used for bigger diameter pipes.
Brand:
FocusensItem NO.:
MFE1DOrder(MOQ):
3000Product Origin:
Hefei,Anhui,ChinaShipping Port:
Shanghai / Ningbo/Hefei/ShenzhenLead Time：
4 weeksSensing Component:
NTC Thermistor various R and B value on requestWorking Temperature:
-30-120°CThermal Time:
Water (0.4m/s) T0.63 ≤ 30sHi-Pot:
1500V 1mA 1minuteIP68 Waterproof Pipe Clamp Temperature Sensor
MFE1D series pipe clamp temperature sensor have intergral probe and body , which is overmoulded with good waterproof performance thermoplastic materials . It have a standard 110mm length adjustable chain , extra chains can be added to extend the length when it is used for bigger diameter pipes.
Key Parameters:
|
Sensing Component |
NTC Thermistor various R and B value on request |
Probe Material |
TPE (With/Without Copper) |
|
Working Temperature |
-30-120°C |
Cable Material |
TPE cable |
|
Thermal Time |
Water (0.4m/s) T0.63 ≤ 30s |
Sizes |
adjustable |
|
Dissipation factor |
≥2.5 mW/°C |
Connector |
On request |
|
Long-term stability |
Drift ≤ 3% after 1000h heat or cold store (80°C / -30°C) |
|
|
|
Hi-Pot |
1500V 1mA 1minute |
|
|
|
Insulation Resistance |
DC500V min.100Mohm |
|
|
Typical Applications
Underfloor heating
Water pipe
Wall-hanging stove
Pipe heating system
Advantages:
IP68 Waterproof
Adjustable for different diameter pipes
Wide working temperature range
Good wether endurance
Typical Sizes:
Flexible Custom Design &Development Welcomed. Contact us now for more details or for your sensing solutions
