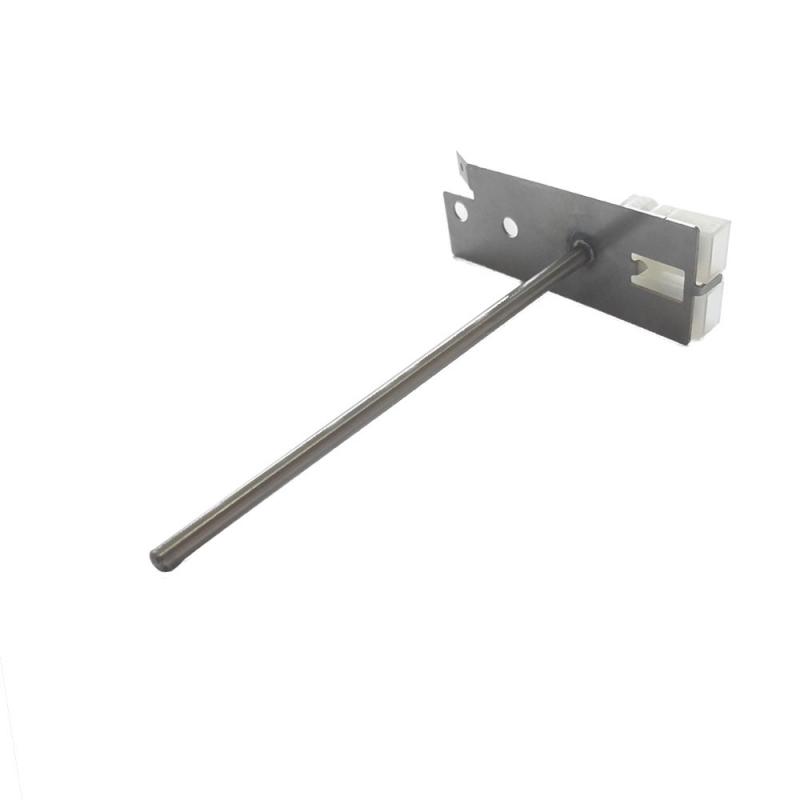

MEP-4 series temperature sensor using the NTC thermistor element. It is flange mounting type sensor probing sensor into liquid or air chamber which temperature to be measured.Products can be custom according to different temperature environment or application.With our mature craft, it can be made with a variety of specifications,customers can usedirectly without abricating.
Brand:
FocusensItem NO.:
MEP-4Order(MOQ):
3000Product Origin:
Hefei,Anhui,ChinaShipping Port:
Shanghai / Ningbo/Hefei/ShenzhenLead Time：
4 weeksSensing Component:
NTC Thermistor various R and B value on requestWorking Temperature:
-30-120’CThermal Time:
Water (0.4m/s) T0.63 ≤ 30sHi-Pot:
1500V 1mA 1minute250'C NTC Temperature Sensor for Cooking Oven MFP-4 Series
MEP-4 series temperature sensor using the NTC thermistor element. It is flange mounting type sensor probing sensor into liquid or air chamber which temperature to be measured.Products can be custom according to different temperature environment or application.With our mature craft, it can be made with a variety of specifications,customers can usedirectly without abricating.
Key Parameters:
Sensing Component
NTC Thermistor various R and B value on
request
Probe Material
SUS
Working Temperature
-30-120’C
Cable Material
Teflon wire
Thermal Time
Water (0.4m/s) T0.63 ≤ 30s
Sizes
On request
Dissipation factor
≥2.5 mW/°C
Connector
On request
Long-term stability
Drift ≤ 3% after 1000h heat or
cold store (80°C / -30°C)
Hi-Pot
1500V 1mA 1minute
Insulation Resistance
DC500V min.100Mohm
Typical Applications
Toaster oven
Constant temperature liquid bath
Constant temperature chambers
Food waste disposer
Dish washer.
Advantages:

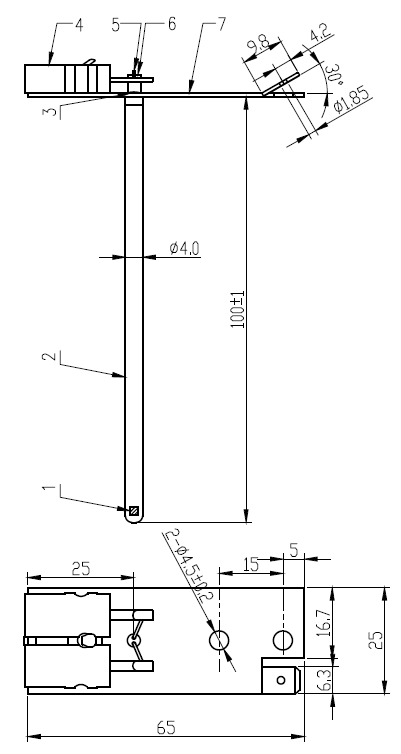

Typical Sizes:
Standard RT and Tolerence:
Ordering Code:
Flexible Custom Design &Development Welcomed. Contact us now for more details or for your sensing solutions
