Fast Speed Temperature Sensor for cooktop MFP-5 Series

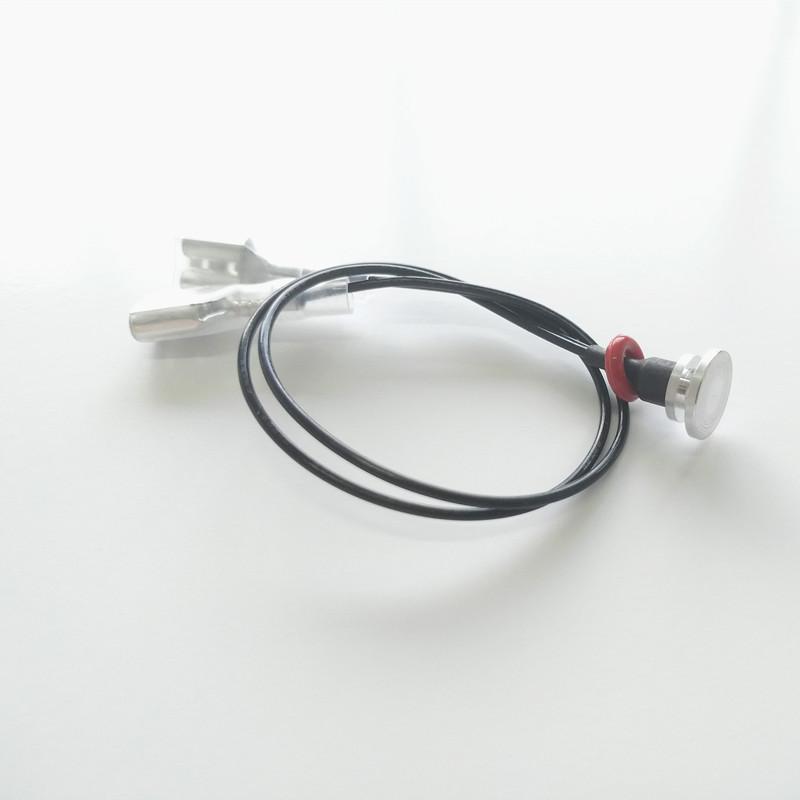

MFP-5 series temperature sensor adopts NTC thermistor element.It's a flat metal case with a surface temperature measurement.

Brand:
Focusens
Item NO.:
MFP-5
Order(MOQ):
3000
Product Origin:
Hefei,Anhui,China
Shipping Port:
Shanghai / Ningbo/Hefei/Shenzhen
Lead Time：
4 weeks
Sensing Component:
NTC Thermistor various R and B value on request
Working Temperature:
-30-120’C
Thermal Time:
Water (0.4m/s) T0.63 ≤ 30s
Hi-Pot:
1500V 1mA 1minute

Inquire now

Categories

New Products

Product Detail

Fast Speed Temperature Sensor for Drinking Water MFP-5 Series

MFP-5 series temperature sensor adopts NTC thermistor element.It's a flat metal case with a surface temperature measurement. Products can be customized for different temperature environments or applications. Mature technology, can produce a variety of specifications, customers can be directly used without processing.

Key Parameters:

Sensing Component	NTC Thermistor various R and B value on request	Probe Material	SUS
Working Temperature	-30-120’C	Cable Material	PVC/TPU wire
Thermal Time	Water (0.4m/s) T0.63 ≤ 30s	Sizes	On request
Dissipation factor	≥2.5 mW/°C	Connector	On request
Long-term stability	Drift ≤ 3% after 1000h heat or cold store (80°C / -30°C)
Hi-Pot	1500V 1mA 1minute
Insulation Resistance	DC500V min.100Mohm

Typical Applications

Toilet seat heating

Water heater

Floor heating and

Cogeneration systems

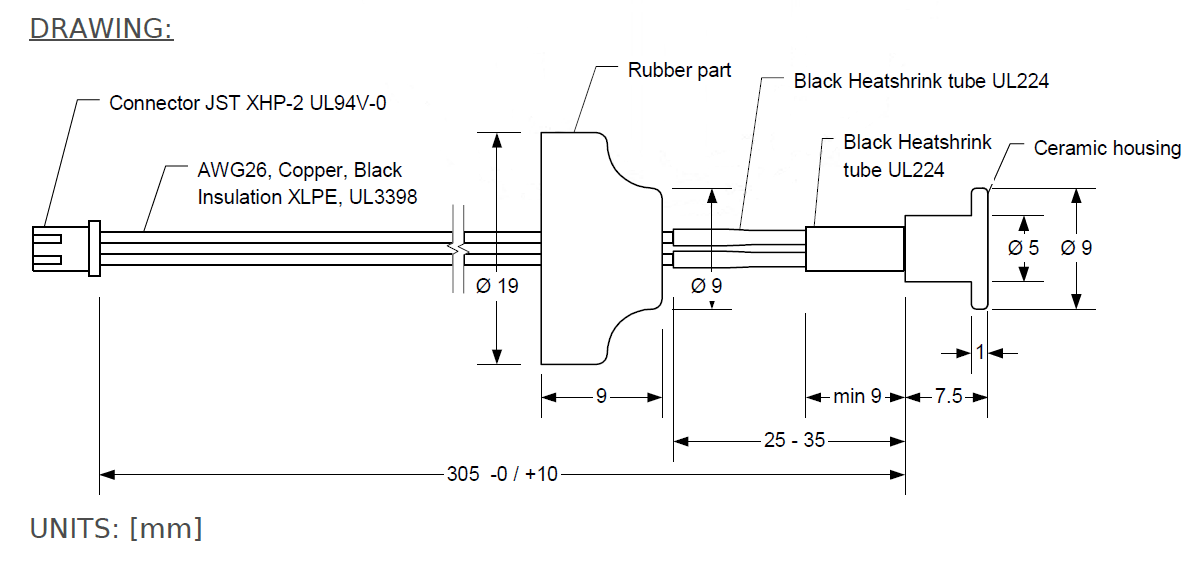

ypical Sizes:

Ordering Code:

Flexible Custom Design &Development Welcomed. Contact us now for more details or for your sensing solutions
