M3 Thread Mount Temperature Sensor for Cooking Device MFP Series

MFP-6 series temperature sensor using the NTC thermistor element.It is screw type sensor mount onto devices by screwina hausing

Brand:
Focusens
Item NO.:
MFP-6
Order(MOQ):
3000
Product Origin:
Hefei,Anhui,China
Shipping Port:
Shanghai / Ningbo/Hefei/Shenzhen
Lead Time：
4 weeks
Sensing Component:
NTC Thermistor various R and B value on request
Working Temperature:
-30-125°C
Thermal Time:
Water (0.4m/s) T0.63 ≤ 30s
Hi-Pot:
1500V 1mA 1minute

Inquire now

Categories

New Products

Product Detail

M3 Thread Mount Temperature Sensor for Cooking Device MFP Series

MFP-6 series temperature sensor using the NTC thermistor element.It is screw type sensor mount onto devices by screwina hausing.t Products can be custom according to different temperature environment or application.tWith our mature craft, it can be made with a variety of specifications,customers can usedirectly without fabricaing.

Key Parameters:

Sensing Component	NTC Thermistor various R and B value on request	Probe Material	SUS/AL
Working Temperature	-30-125°C	Cable Material	PVC/Teflon wire
Thermal Time	Water (0.4m/s) T0.63 ≤ 30s	Sizes	On request
Dissipation factor	≥2.5 mW/°C	Connector	On request
Long-term stability	Drift ≤ 3% after 1000h heat or cold store (80°C / -30°C)
Hi-Pot	1500V 1mA 1minute
Insulation Resistance	DC500V min.100Mohm

Typical Applications

Wall-mounted furnace water heater

Cylinder cavity

Temperature measurement in pipeline

Food processor

Water boiler

Electric pressure cooker

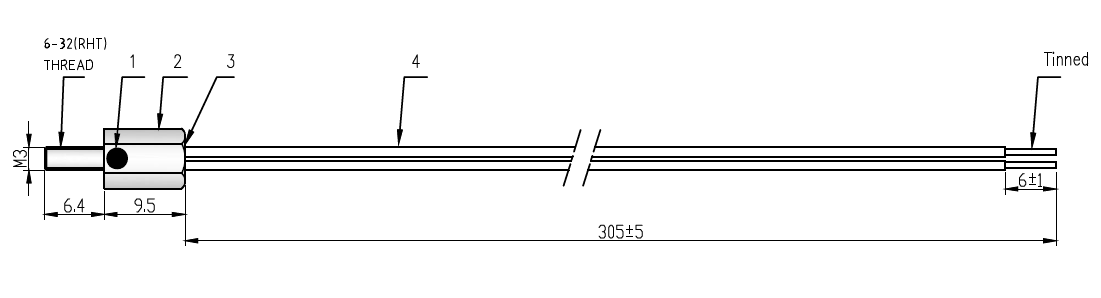

Typical Sizes:

Flexible Custom Design &Development Welcomed. Contact us now for more details or for your sensing solutions
