Focusens MF58 series NTC thermistor is high precision NTC thermistor sealed in glass.

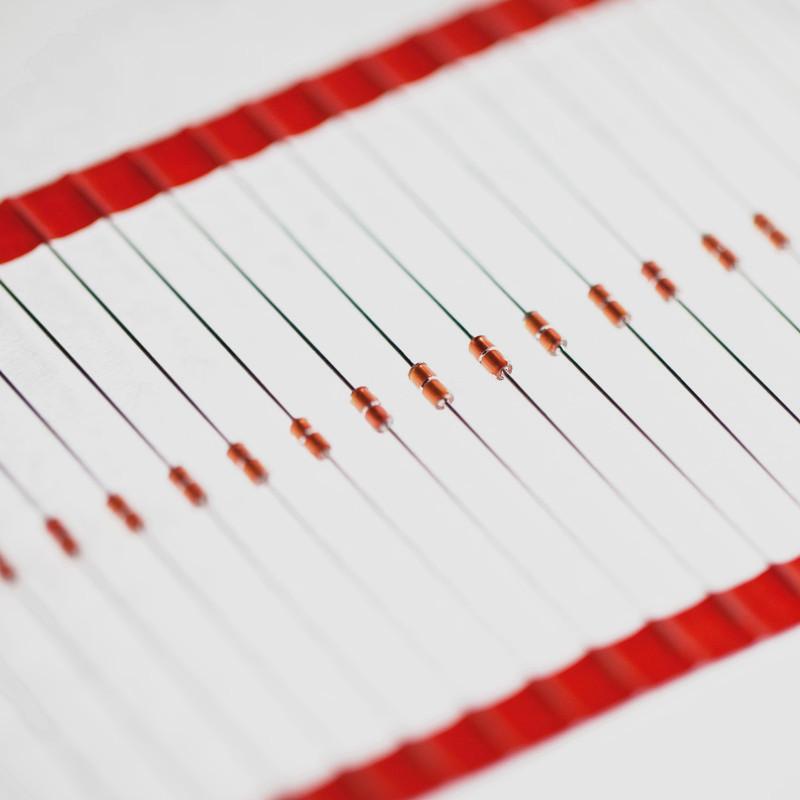

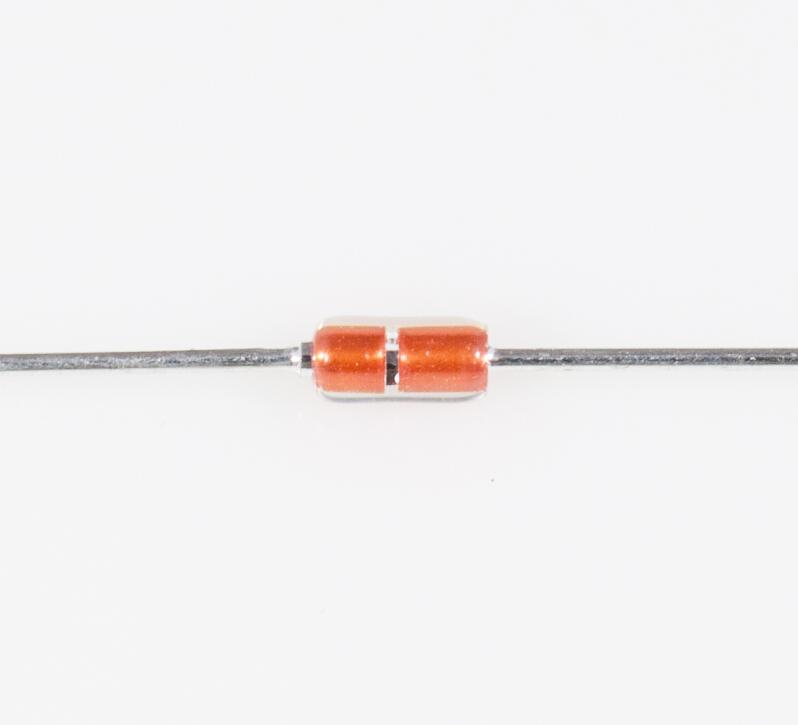

There are two lead type of MF58 thermistor, the radial lead type with ordering code MF58A and MF58B is sealedas small glass bead diameter Max.1.5mm and 2.2mm respectively,the axial lead part MF58C is packed in standard DO35 glass.
This chip in glass thermistor have standard and small size. With advanced ceramic sintering and glass sealing technique it have advantage of high precision, miniture size,fast response and reliable stability especially under 100-250'C high temperature.

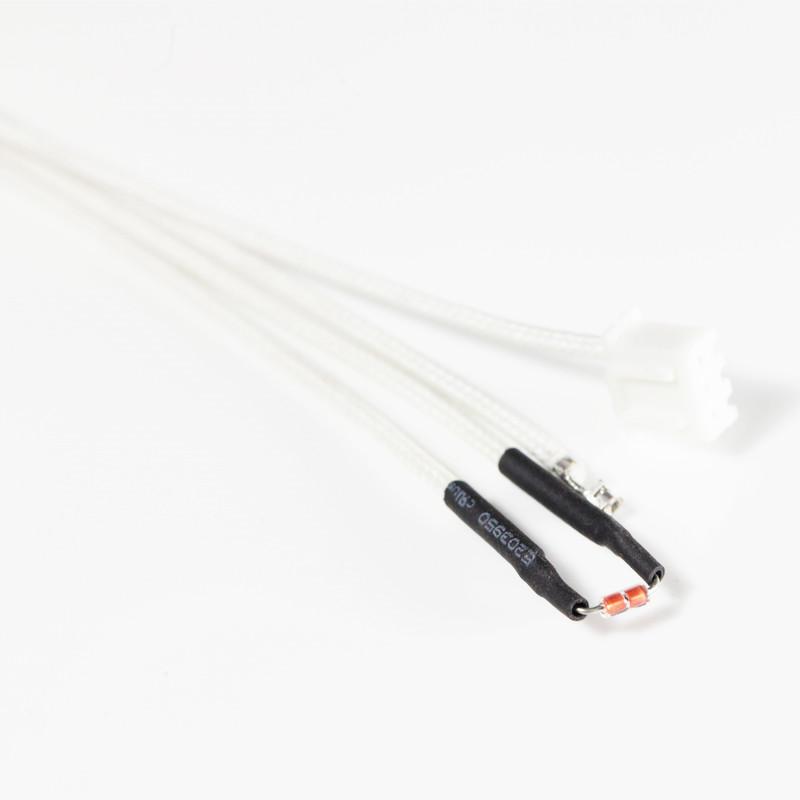

The MF58 thermistor is widely used for temperature sensors as well as used directly on PCB or circuit for precision temperature sensing.
Brand:
FocusensItem NO.:
MF58COrder(MOQ):
2000Product Origin:
Hefei Anhui ChinaShipping Port:
Shanghai / Ningbo/Hefei/ShenzhenLead Time：
1-2 weeksSensing Component:
NTCWorking Temperature:
-50- 250’CThermal Time:
10s|
Typical Applications |
Features |
|
l Air conditioning equipment l Heating equipment l Electronic thermometer l Electronic calendar l Cell phone batteries l Office automation facilities |
l Small size l Fast response l Good interchangeability and consistency l Radial lead, Axial lead |
Physical characteristics
|
Model |
Dissi. Coef.(mW/℃) |
Thermal time Constant (s) |
PMAX (mW) |
||
|
In still air |
In still air |
In stirred oil |
|||
|
MF58A |
1.2~1.3 |
10~11 |
0.9~1.1 |
≤50 |
|
|
MF58B |
0.7~0.8 |
4~5 |
0.3~0.4 |
≤35 |
|
|
MF58C |
2.4~2.5 |
8~10 |
1.1~1.2 |
≤100 |
|
Dimensions (mm)
|
MF58A / MF58B |
MF58C |
||||||
|
|
Model |
DMAX |
L1MAX |
L2MAX |
d±0.05 |
|
|
|
|
MF58A |
2.2 |
4.1 |
30 |
0.25 |
|
|
|
|
MF58B |
1.5 |
2.5 |
30 |
0.2 |
|
|
|
|
MF58C |
1.85 |
3.85 |
28 |
0.5 |
|
|
Electrical characteristics
|
Model |
Resistance |
B Value |
Operating Temp. |
||
|
R25 |
Tolerance |
B |
Tolerance |
||
|
kΩ |
% |
K |
% |
°C |
|
|
MF58□□□3450□ |
2~10 |
±1％ ±2％ ±3％ ±5％ |
3450 |
±0.5％ ±1％ ±2％ |
-40~250 |
|
MF58□□□3750□ |
8~10 |
3750 |
|||
|
MF58□□□3950□ |
10~50 |
3950 |
|||
|
MF58□□□4150□ |
50~100 |
4150 |
|||
|
MF58□□□4200□ |
100~350 |
4200 |
|||
|
MF58□□□4350□ |
870~980 |
4350 |
|||
|
MF58□□□4450□ |
1000~1500 |
4450 |
|||
Notes:
1. The 1st □ fills with code of dimension.
2. The 2nd □ fills with rated resistance.
3. The 3rd □ fills with resistance precision symbol.
4. The 4th □ fills with B value precision symbol.
5. We will be able to supply products according to client’s demands.
