MFP-1 series temperature sensor using the NTC thermistor element, according to the different temperature environment or application.through the mature technology, fabricate into a variety of specificationsof the sensor,customers can usedirecty without fabricating.
Brand:
FocusensItem NO.:
MFP-1Order(MOQ):
3000Product Origin:
Hefei Anhui ChinaShipping Port:
Shanghai / Ningbo/Hefei/ShenzhenLead Time：
4 weeksSensing Component:
NTC Thermistor various R and B value on requestWorking Temperature:
-20-120°CThermal Time:
Water (0.4m/s) T0.63 ≤ 60sHi-Pot:

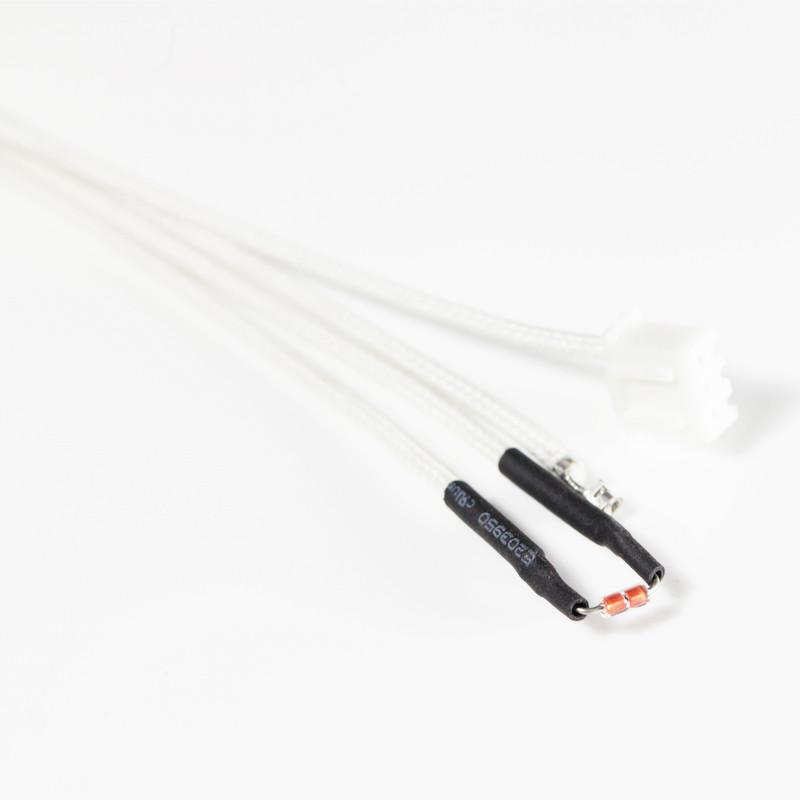

1500V 1mA 1minuteSimple Temperature Sensor Axial Lead Glass NTC Thermistor
MFP-1 series temperature sensor using the NTC thermistor element, according to the different temperature environment or application.through the mature technology, fabricate into a variety of specificationsof the sensor,customers can usedirecty without fabricating.MEP-1 Series Sensor is simply connected to silicon rubber or other high temperature lead wire. NTC protect by silicon rubber tube or Teflon tube.
Key Parameters:
|
Sensing Component |
NTC Thermistor various R and B value on request |
Probe Material |
|
|
Working Temperature |
-20-120°C |
Cable Material |
Glass fiber wire/Teflon wire |
|
Thermal Time |
Water (0.4m/s) T0.63 ≤ 60s |
Sizes |
On request |
|
Dissipation factor |
≥ 2.5mW/°C |
Connector |
On request |
|
Long-term stability |
Drift ≤ 3% after 1000h heat or cold store (80°C / -30°C) |
|
|
|
Hi-Pot |
1500V 1mA 1minute |
||
|
Insulation Resistance |
DC500V min.100Mohm |
Typical Applications
Rice Cooker
Induction cooker
Ambient tempetc
Ordering Code:
Flexible Custom Design &Development Welcomed. Contact us now for more details or for your sensing solutions
