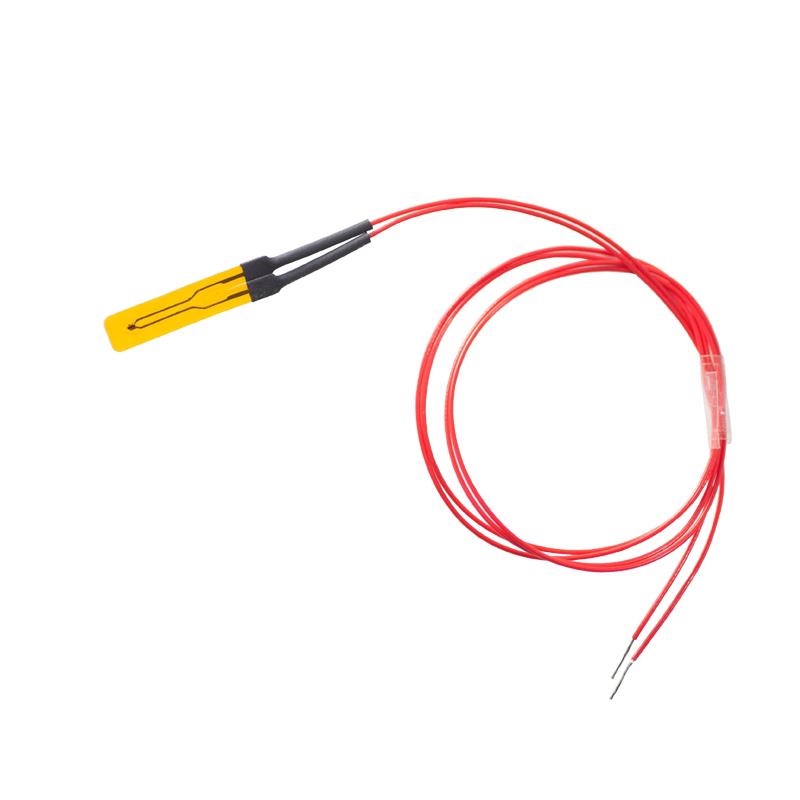

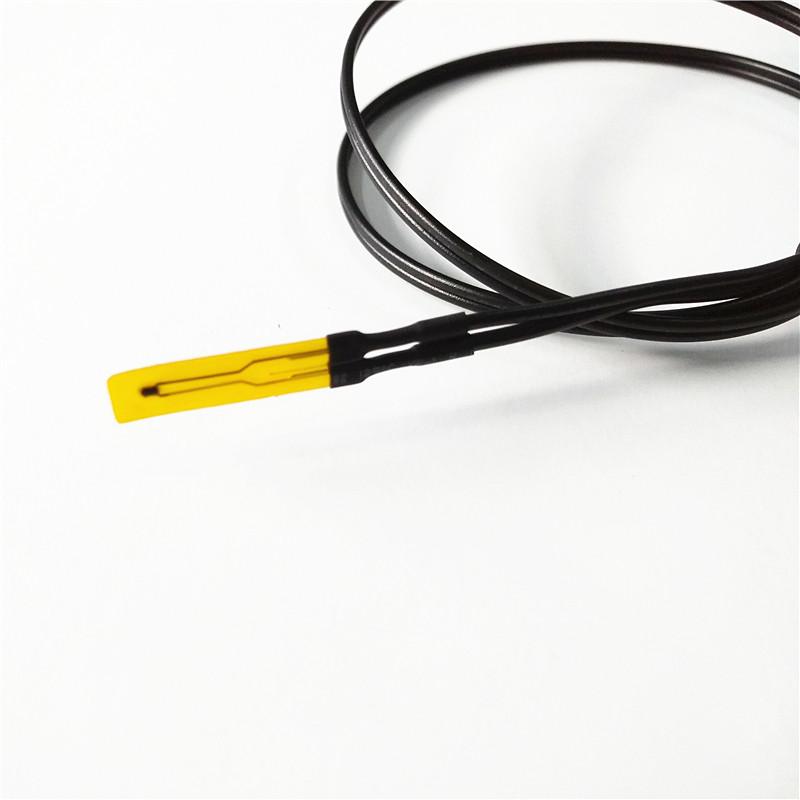

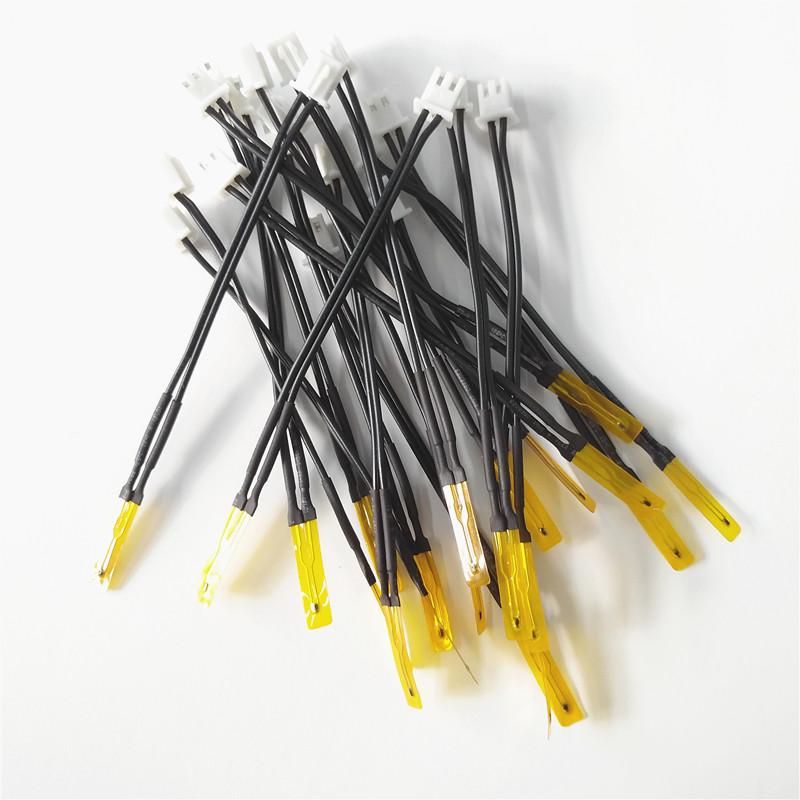

Simple with Fast Response Temperature Sensor Assembly Thin Film NTC Thermistor

Film Thermistor
Film Thermistor Film Thermistor Film Thermistor

Simple with Fast Response Temperature Sensor Assembly Thin Film NTC Thermistor

MFP-1 series temperature sensor using the NTC thermistor element, according to the different temperature environment or application.through the mature technology, fabricate into a variety of specificationsof the sensor,customers can usedirecty without fabricating.MEP-1 Series Sensor is simply connected to silicon rubber or other high temperature lead wire. NTC protect by silicon rubber tube or Teflon tube.


  • Brand:

    Focusens

  • Item NO.:

    MFP-1

  • Order(MOQ):

    3000

  • Product Origin:

    Hefei,Anhui,China

  • Shipping Port:

    Shanghai / Ningbo/Hefei/Shenzhen

  • Lead Time：

    4 weeks

  • Sensing Component:

    NTC Thermistor various R and B value on request

  • Working Temperature:

    -20-120°C

  • Thermal Time:

    Water (0.4m/s) T0.63 ≤ 60s

  • Hi-Pot:

    1500V 1mA 1minute
Inquire now
  • Product Detail

Simple Temperature Sensor Thin Film NTC Thermistor


MFP-1 series temperature sensor using the NTC thermistor element, according to the different temperature environment or application.through the mature technology, fabricate into a variety of specificationsof the sensor,customers can usedirecty without fabricating.MEP-1 Series Sensor is simply connected to silicon rubber or other high temperature lead wire. NTC protect by silicon rubber tube or Teflon tube.


Key Parameters:

Sensing Component

NTC Thermistor various R and B value on request

Probe Material

Working Temperature

-20-120°C

Cable Material

Glass fiber wire/Teflon wire

Thermal Time

Water (0.4m/s) T0.63 ≤ 60s

Sizes

On request

Dissipation factor

≥ 2.5mW/°C

Connector

On request

Long-term stability

Drift ≤ 3% after 1000h heat or cold store (80°C / -30°C)

Hi-Pot

1500V 1mA 1minute

Insulation Resistance

DC500V min.100Mohm


Typical Applications

Rice Cooker

Induction cooker

Ambient tempetc

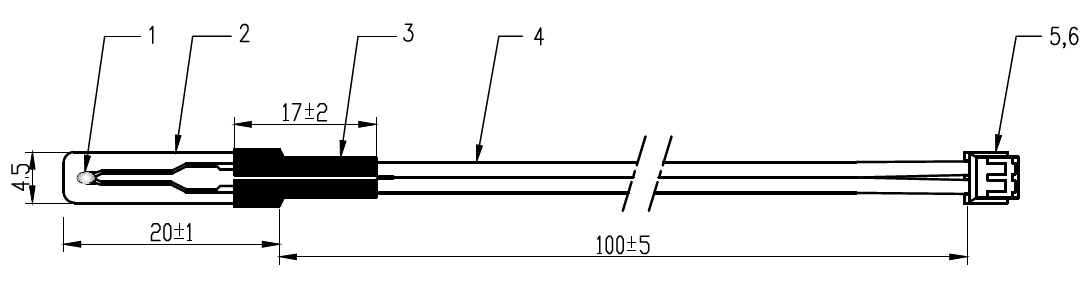

Typical Sizes:



Ordering Code:

Flexible Custom Design &Development Welcomed.  Contact us now for more details or for your sensing solutions
