MFP-2 series temperature sensor using the NTC thermistor element. It is surface mounting type sensor fixed to devices with mounting screw of different required size. Products can be custom according to different temperature environment or application.
Brand:
FocusensItem NO.:
MFP-2Order(MOQ):
3000Product Origin:
Hefei,Anhui,ChinaShipping Port:
Shanghai / Ningbo/Hefei/ShenzhenLead Time：
4 weeksSensing Component:
NTC Thermistor various R and B value on requestWorking Temperature:
-30-150’CThermal Time:
Water (0.4m/s) T0.63 ≤ 30sHi-Pot:
1500V 1mA 1minute3000V High Voltage Surface Temperature Sensor MFP-2 Series
MFP-2 series temperature sensor using the NTC thermistor element. BMS temperature sensor is surface mounting type sensor fixed to devices with mounting screw of different required size. Products can be custom according to different temperature environment or application. With our mature craft, it can be made with a variety of secifications,customers can usedirectly without labricating.
Key Parameters:
|
Sensing Component |
NTC Thermistor various R and B value on request |
Probe Material |
Cu/Sn |
|
Working Temperature |
-30-150’C |
Cable Material |
PVC/Teflon wire |
|
Thermal Time |
Water (0.4m/s) T0.63 ≤ 30s |
Sizes |
On request |
|
Dissipation factor |
≥2.5 mW/°C |
Connector |
On request |
|
Long-term stability |
Drift ≤ 3% after 1000h heat or cold store (80°C / -30°C) |
|
|
|
Hi-Pot |
1500V 1mA 1minute |
|
|
|
Insulation Resistance |
DC500V min.100Mohm |
|
|
Typical Applications
Refrigerator
HVAC
Projector
Motor
Lithium Battery Protect
Heat sink

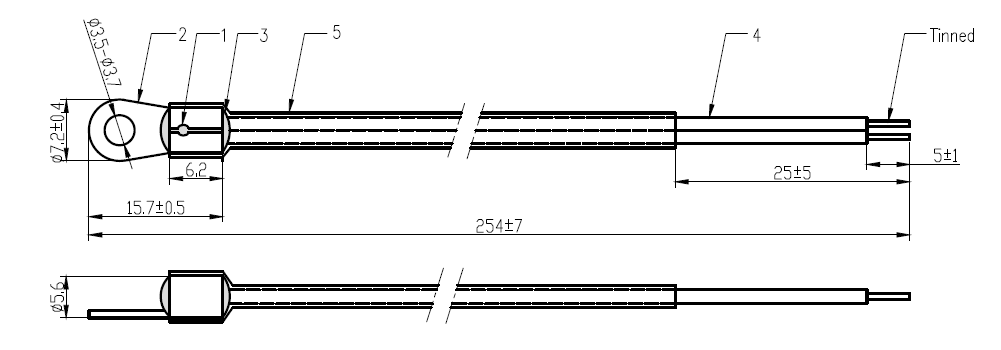

Typical Sizes:
Flexible Custom Design &Development Welcomed. Contact us now for more details or for your sensing solutions
