Thin Film NTC Temperature Sensor for Flat Surfact MFP-1 Series

fast speed ntc Thermistor
fast speed ntc Thermistor fast speed ntc Thermistor fast speed ntc Thermistor fast speed ntc Thermistor fast speed ntc Thermistor

Thin Film NTC Temperature Sensor for Flat Surfact MFP-1 Series

Fast Response MFP-1 Series temperature sensor with Thin Film NTC.


  • Brand:

    Focusens

  • Item NO.:

    MFP-1

  • Order(MOQ):

    3000

  • Product Origin:

    Hefei,Anhui,China

  • Shipping Port:

    Shanghai / Ningbo/Hefei/Shenzhen

  • Lead Time：

    4 weeks

  • Sensing Component:

    NTC 10K 3435/ 10K 3977 as standard various R and B value available on request

  • Working Temperature:

    -30-125°C

  • Thermal Time:

    Water (0.4m/s) T0.63 ≤ 30s

  • Hi-Pot:

    1500V 1mA 1minute
Inquire now
  • Product Detail

Thin Film NTC Temperature Sensor for Flat Surfact MFP-1 Series


MFP-1 series temperature sensor using thin film NTC thermistor as sensing element, the thin and flat size makes it response to heat promptly and especially suitable for mornitor and measure temperature of flat and tight subject. Size and accessories can be adopted according to the different temperature environment or application.




Key Parameters:

Sensing Component

NTC 10K 3435/ 10K 3977 as standard

various R and B value available on request

Probe Material

Thin Film

Working Temperature

-30-125°C

Cable Material

PVC/Teflon  wire

Thermal Time

Water (0.4m/s) T0.63 ≤ 30s

Sizes

On request

Dissipation factor

≥2.5 mW/°C

Connector

On request

Long-term stability

Drift ≤ 3% after 1000h heat or cold store (80°C / -30°C)

Hi-Pot

1500V 1mA 1minute

Insulation Resistance

DC500V min.100Mohm


Typical Applications

Wall-mounted furnace water heater

Heating system

Cooling system

Water boiler

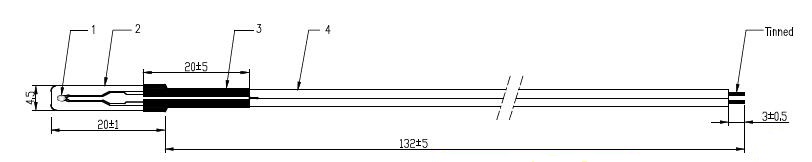

Typical Sizes:



Ordering Code:

Flexible Custom Design &Development Welcomed.  Contact us now for more details or for your sensing solutions
