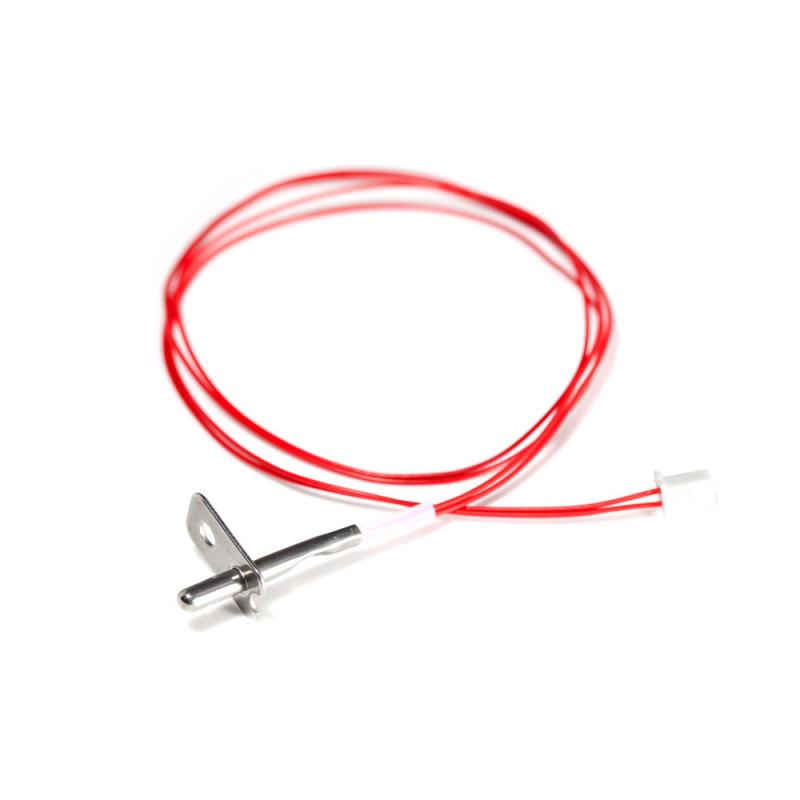

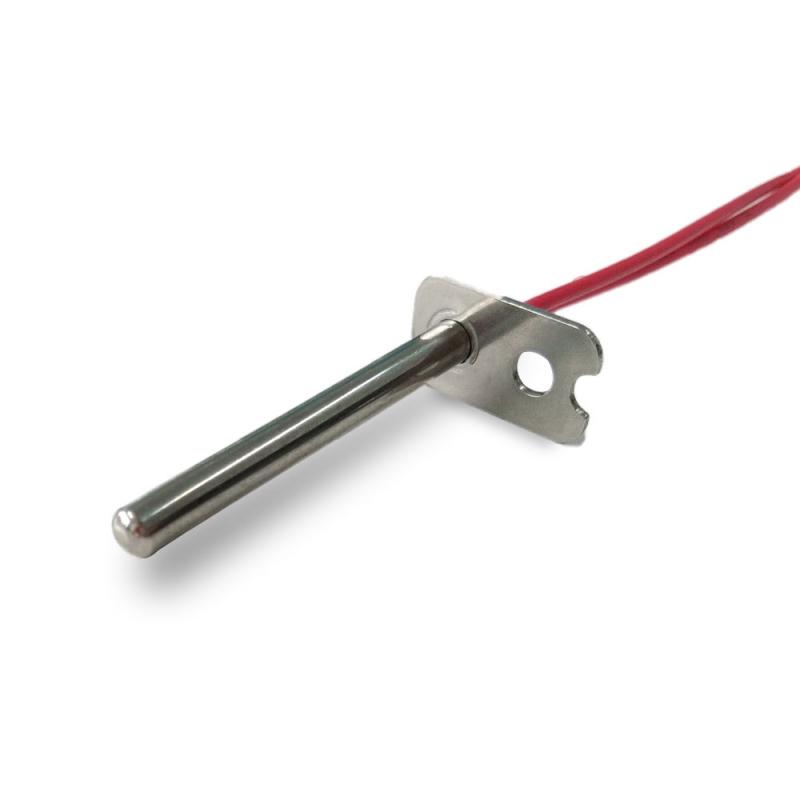

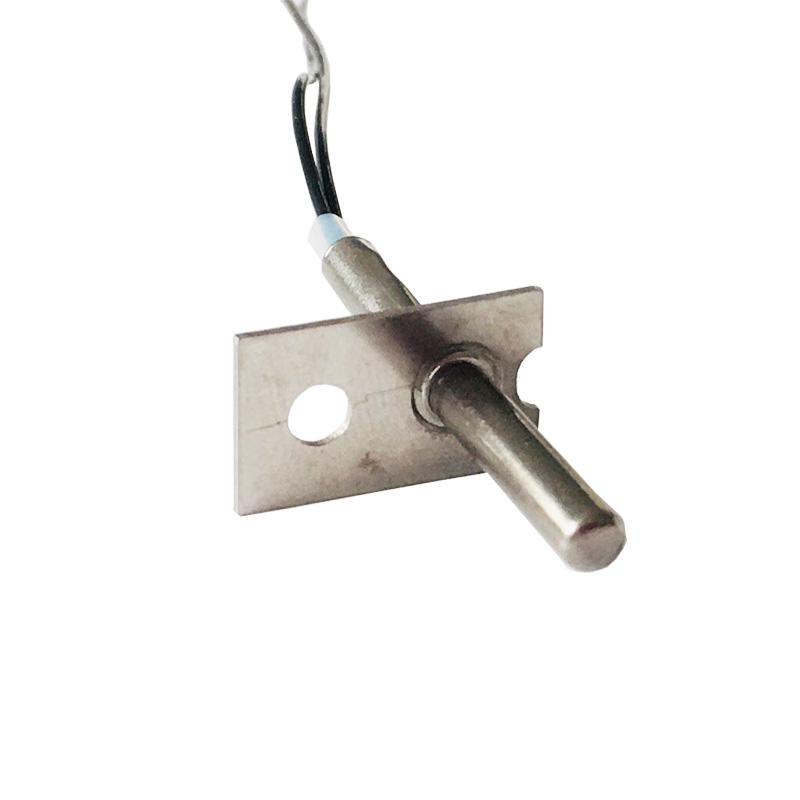

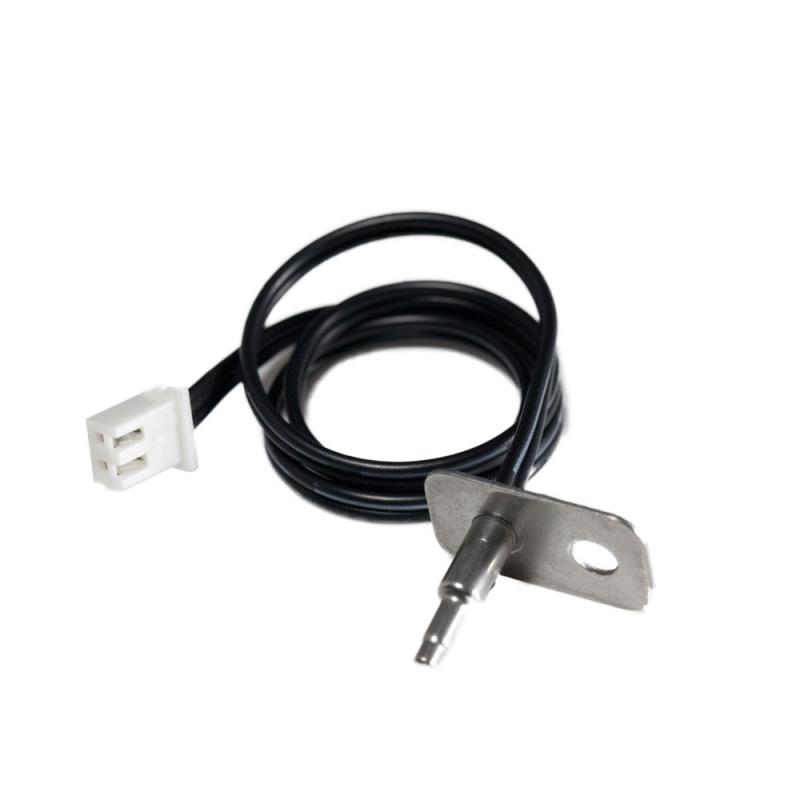

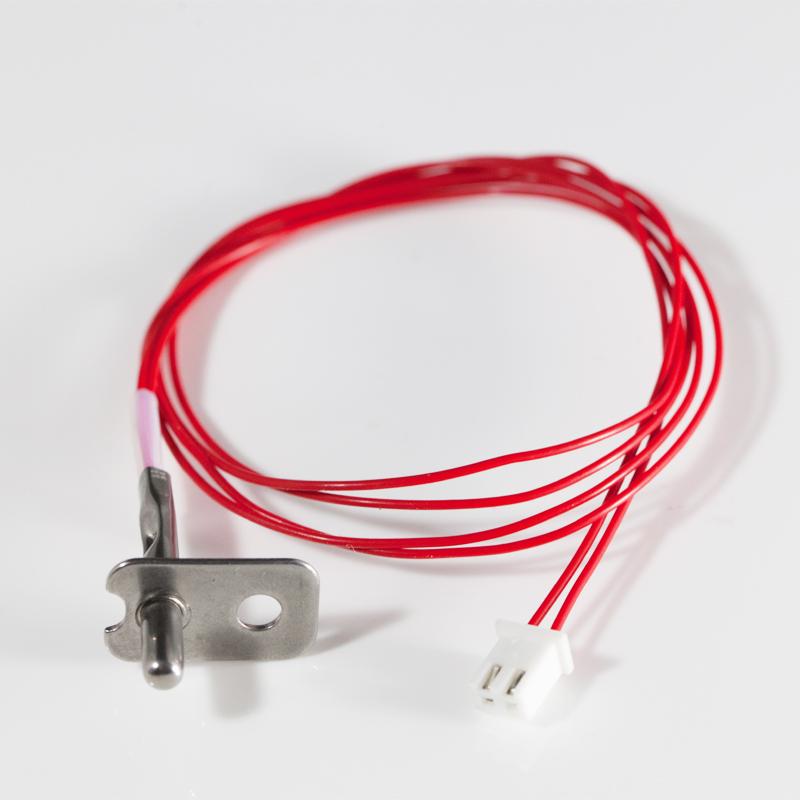

Flange Mount NTC Temperature Sensor for Cooking Oven MFP-4 Series

MFP-4 series temperature sensor using the NTC thermistor element. It is flange mounting type sensor probing sensor into liquid or air chamber which temperature to be measured.Products can be custom according to different temperature environment or application.With our mature craft, it can be made with a variety of specifications,customers can usedirectly without abricating.

Brand:
Focusens
Item NO.:
MEP-4
Order(MOQ):
3000
Product Origin:
Hefei Anhui China
Shipping Port:
Shanghai / Ningbo/Hefei/Shenzhen
Lead Time：
4 weeks
Sensing Component:
NTC Thermistor various R and B value on request
Working Temperature:
-30-125°C
Thermal Time:
Water (0.4m/s) T0.63 ≤ 30s
Hi-Pot:
1500V 1mA 1minute

Inquire now

Parts Selection Guide

New Products

Product Detail

Flange Mount NTC Temperature Sensor for Cooking Oven MFP-4 Series

MEP-4 series temperature sensor using the NTC thermistor element. It is flange mounting type sensor probing sensor into liquid or air chamber which temperature to be measured.Products can be custom according to different temperature environment or application.With our mature craft, it can be made with a variety of specifications,customers can usedirectly without abricating.

Key Parameters:

Sensing Component	NTC Thermistor various R and B value on request	Probe Material	SUS
Working Temperature	-30-125°C	Cable Material	PVC/Teflon wire
Thermal Time	Water (0.4m/s) T0.63 ≤ 30s	Sizes	On request
Dissipation factor	≥2.5 mW/°C	Connector	On request
Long-term stability	Drift ≤ 3% after 1000h heat or cold store (80°C / -30°C)
Hi-Pot	1500V 1mA 1minute
Insulation Resistance	DC500V min.100Mohm

Typical Applications

Wall-mounted furnace water heater

Cylinder cavity

Temperature measurement in pipeline

Food processor

Water boiler

Electric pressure cooker

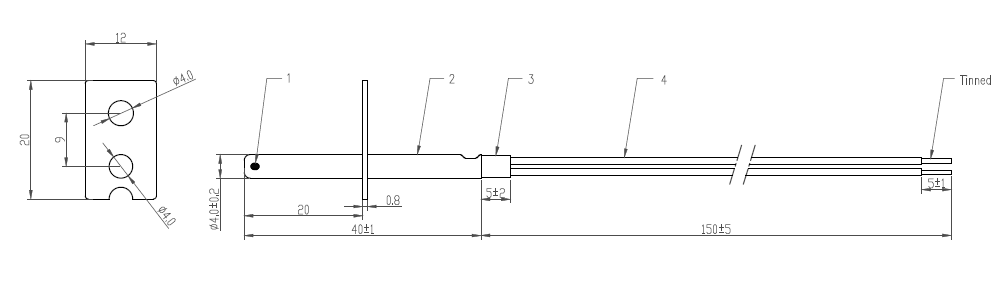

Typical Sizes:

Ordering Code:

Flexible Custom Design &Development Welcomed. Contact us now for more details or for your sensing solutions
