Focusens MFP-6 series Screw Threaded NTC Thermistors are made for surface temperature measurement, sensing, and control. It is easily mounted sensor with brass or aluminum metal screw. It is especially ideal thermal solution when good electrical insulation and good thermal contact with the chassis or wall is required.
Brand:
FocusensItem NO.:
MFP-6Order(MOQ):
3000Product Origin:
Hefei,Anhui,ChinaShipping Port:
Shanghai / Ningbo/Hefei/ShenzhenLead Time：
4 weeksSensing Component:
NTC Thermistor various R and B value on requestWorking Temperature:
-30-125°CThermal Time:
Water (0.4m/s) T0.63 ≤ 30sHi-Pot:
1500V 1mA 1minuteM3 Thread Mount Temperature Sensor for Cooking Device MFP Series

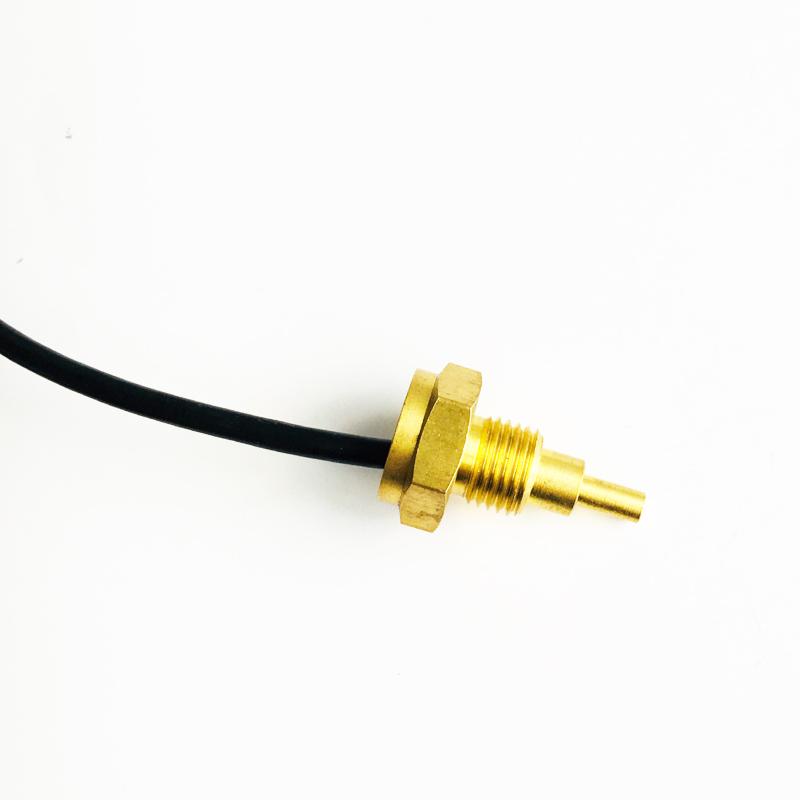

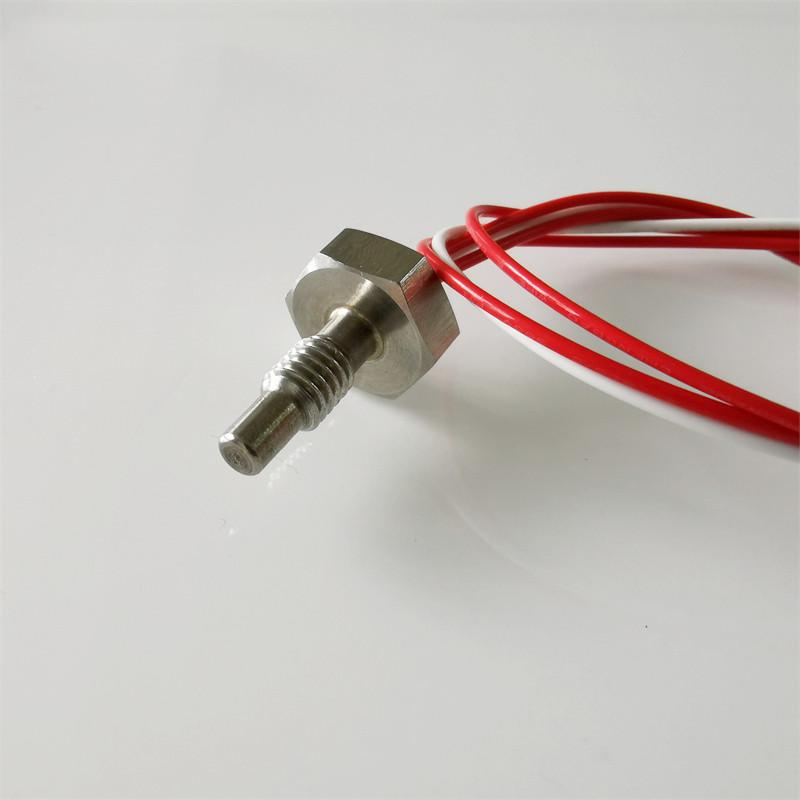

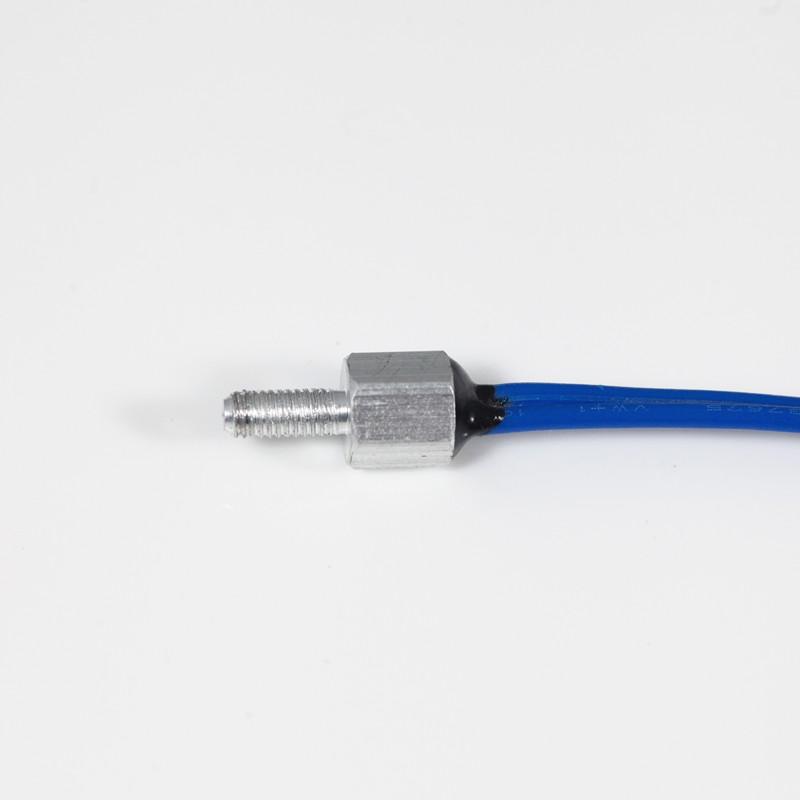

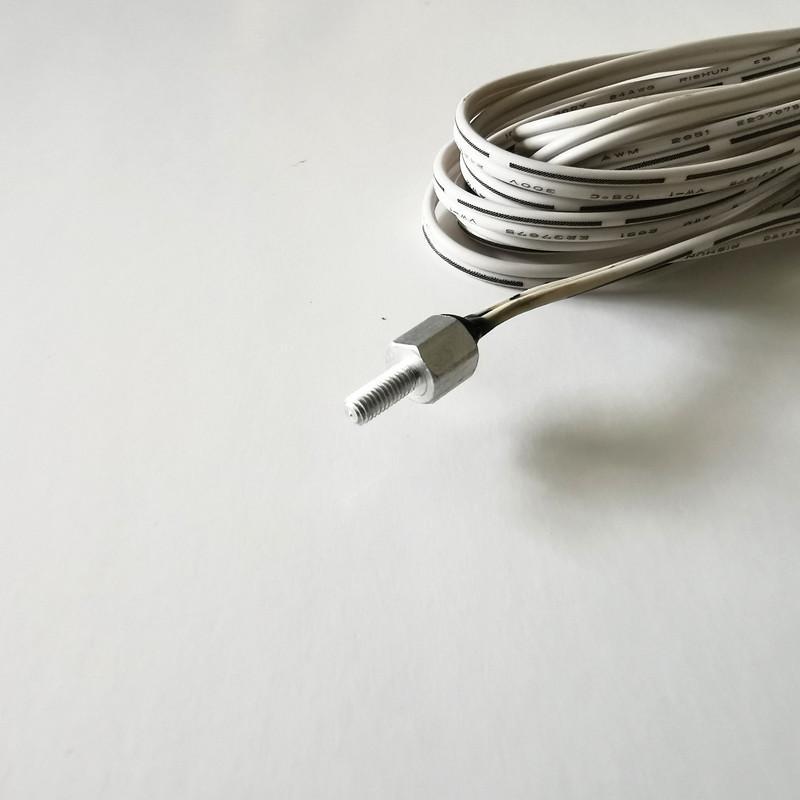

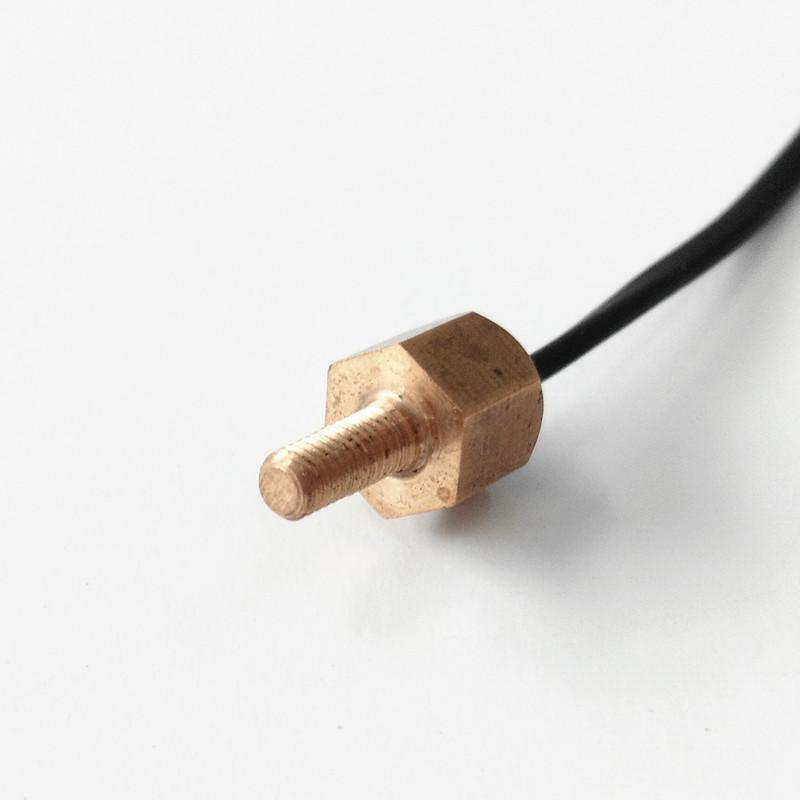

Thread Mount Temperature Sensor using the NTC thermistor element.It is screw type sensor mount onto devices by a M3 or specified screw thread . Products can be custom according to different temperature environment or application.
Key Parameters:
|
Sensing Component |
NTC Thermistor various R and B value on request |
Probe Material |
Brass/AL |
|
Working Temperature |
-30-125°C |
Cable Material |
PVC/Teflon wire |
|
Thermal Time |
Water (0.4m/s) T0.63 ≤ 30s |
Sizes |
On request |
|
Dissipation factor |
≥2.5 mW/°C |
Connector |
On request |
|
Long-term stability |
Drift ≤ 3% after 1000h heat or cold store (80°C / -30°C) |
|
|
|
Hi-Pot |
1500V 1mA 1minute |
|
|
|
Insulation Resistance |
DC500V min.100Mohm |
|
|
Typical Applications
Wall-mounted furnace water heater
Cylinder cavity
Temperature measurement in pipeline
Household/ Commercial Oven battery
Coffee Machine
Electric pressure cooker
Advantages:

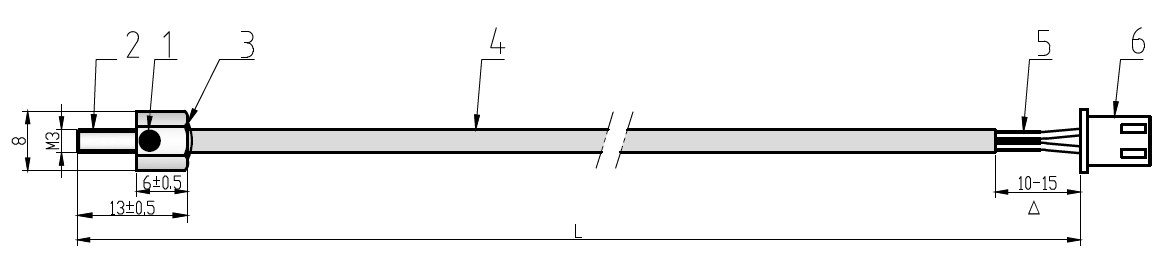

Typical Sizes:
Standard RT and Tolerence:
Ordering Code:
Alternative sensing version PT1000 / PT1000/ Thermocouple T type / Thermocouple K type available with same featured mounting configuration .
