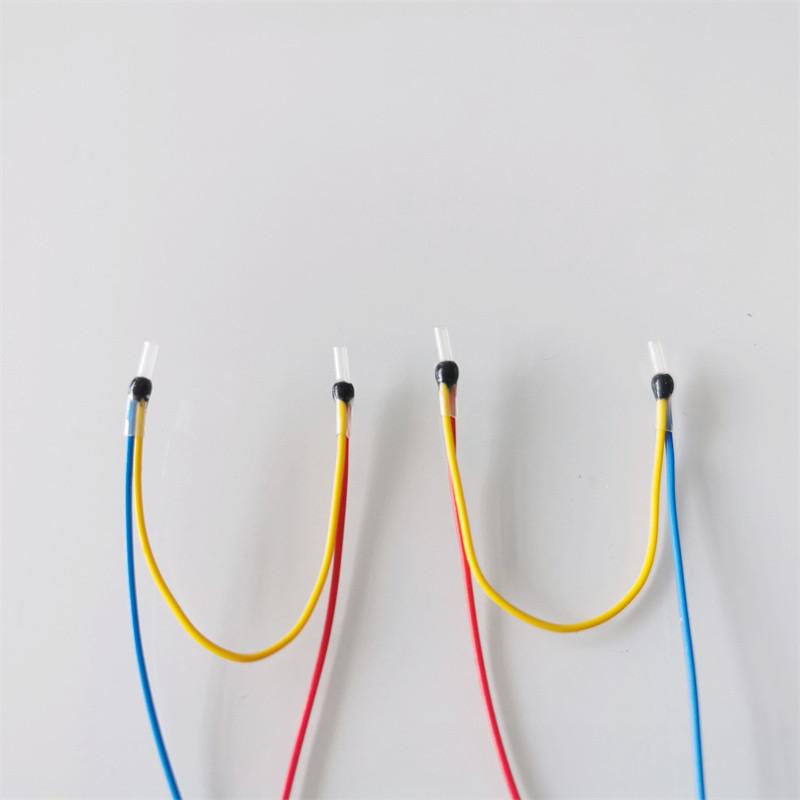

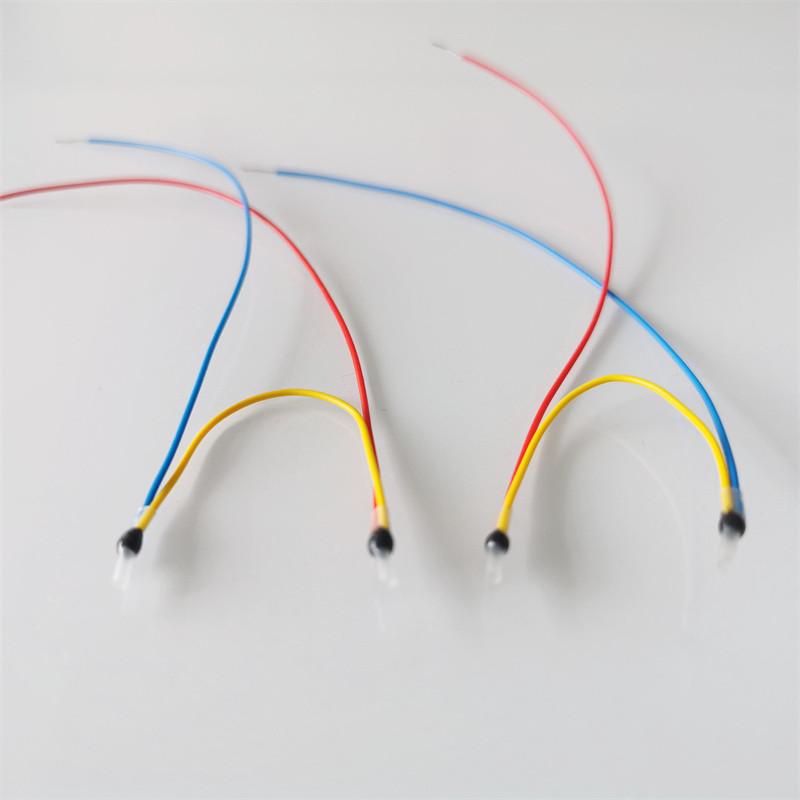

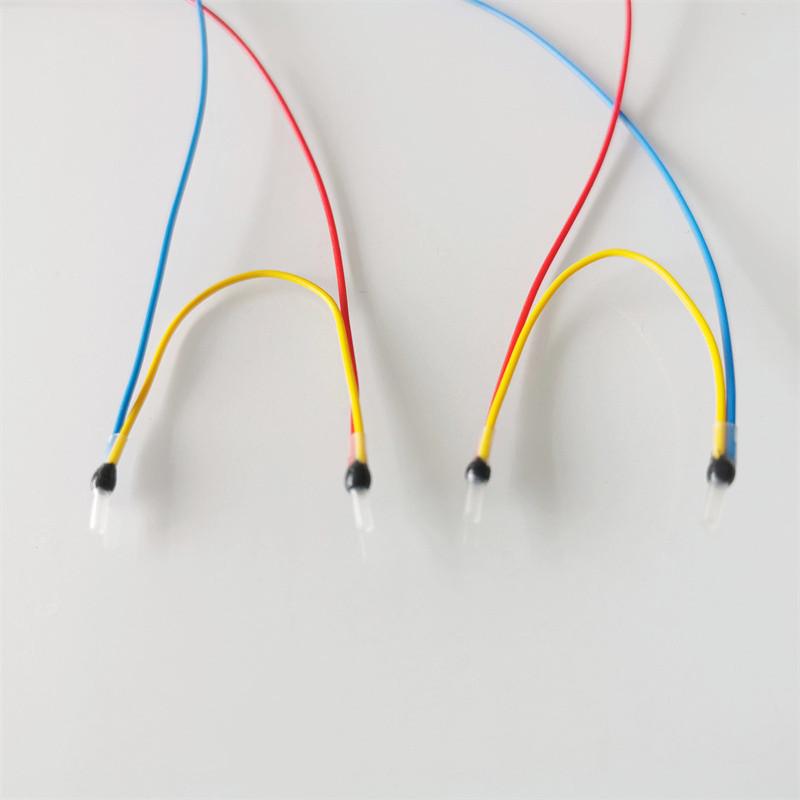

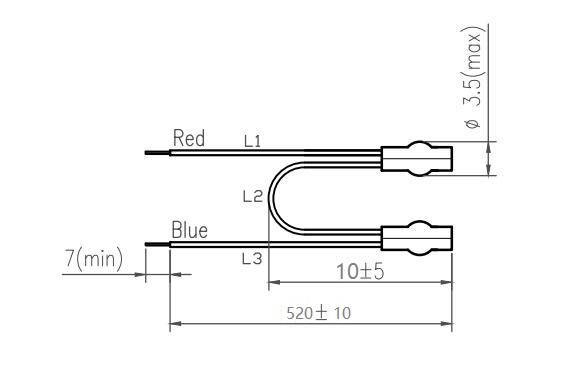

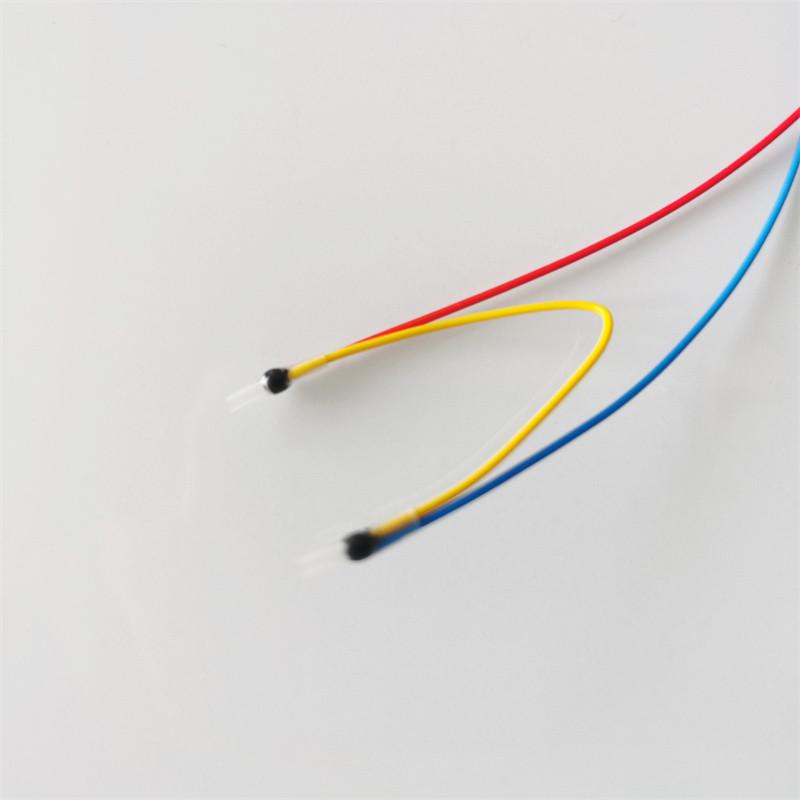

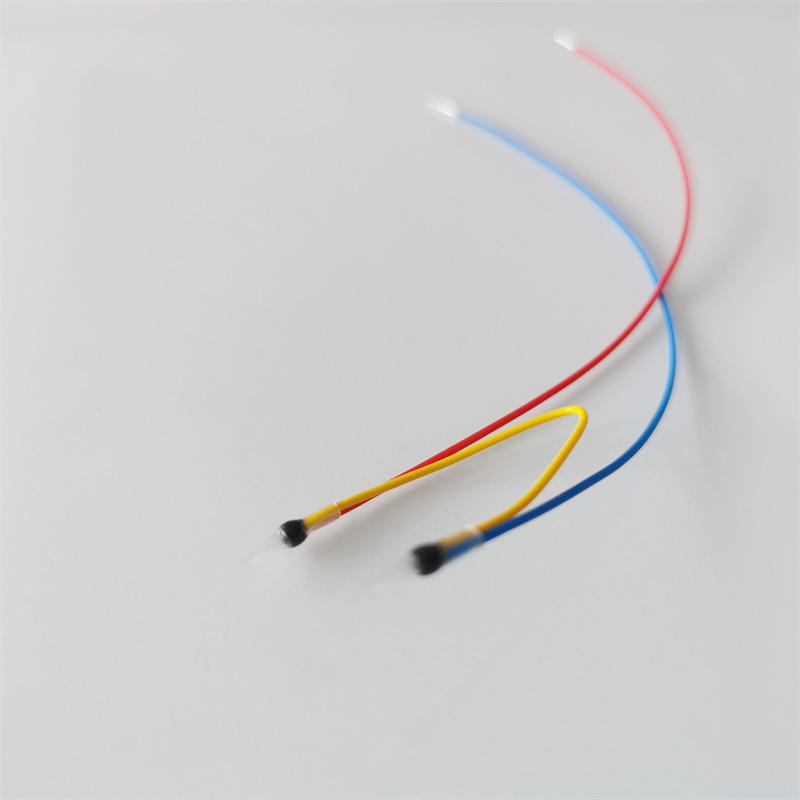

MZ6 PTC Thermistor mini-version for motor windings

Item

Single

Triplep

Unite

Max.Working Voltage(DC)

25

25

V

Rated Control Temperature Tk

To Customer equirement

To Customer Requirement

°C

Rated Control Temperature

TollerenceΔT1

±5

±5

°C

Reproducibility of TKΔT2

±0.5

±0.5

°C

Resistance value at 25°C

≤100

≤300

Ω

Resistance value at TK-5°C

≤550

≤1600

Ω

Resistance value at TK+5°C

≥1330

≥4000

Ω

Resistance value at TK+15°C

≥4

≥12

kΩ

Thermal response Time  T_a

≤5

≤5

s

Strength of Electrical Insulation Uis

AC2.5

AC2.5

kV

Max. Controlled Temperature

180

180

°C

Max. Storage Temperature

180

180

°C

Min Storage Temperature

-40

-40

°C
