MZ6 Triple PTC Thermistor Enhanced Insulation for Winding tempeature range +60-180'C

The MZ6 Series PTC Thermistor are used to monitor and protect motor from over temperature. Temperature range is from 60 to 180°C.

PTC thermistor beads with different rated response temperatures can be connected in series as duel, triple or Sextuple .

Brand:
Focusens
Item NO.:
PTC Thermistor MZ6
Order(MOQ):
1000pcs
Product Origin:
Hefei,Anhui,China
Shipping Port:
Shanghai / Ningbo/Hefei/Shenzhen
Lead Time：
2 weeks
Sensing Component:
PTC Thermistor
Working Temperature:
60-180'C
Thermal Time:
10s
Hi-Pot:
2500V AC

Inquire now

Parts Selection Guide

New Products

Product Detail

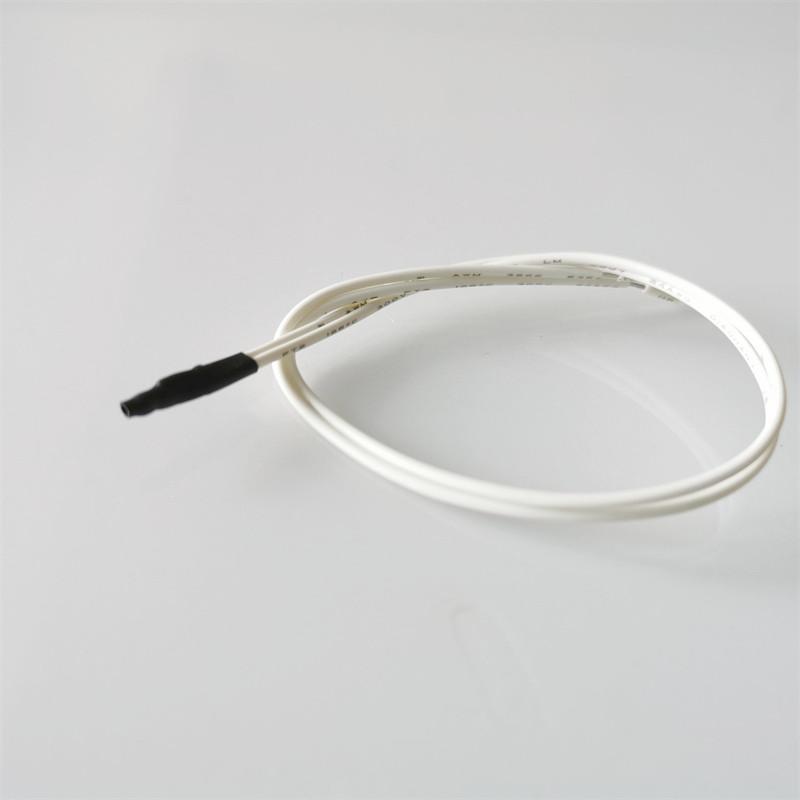

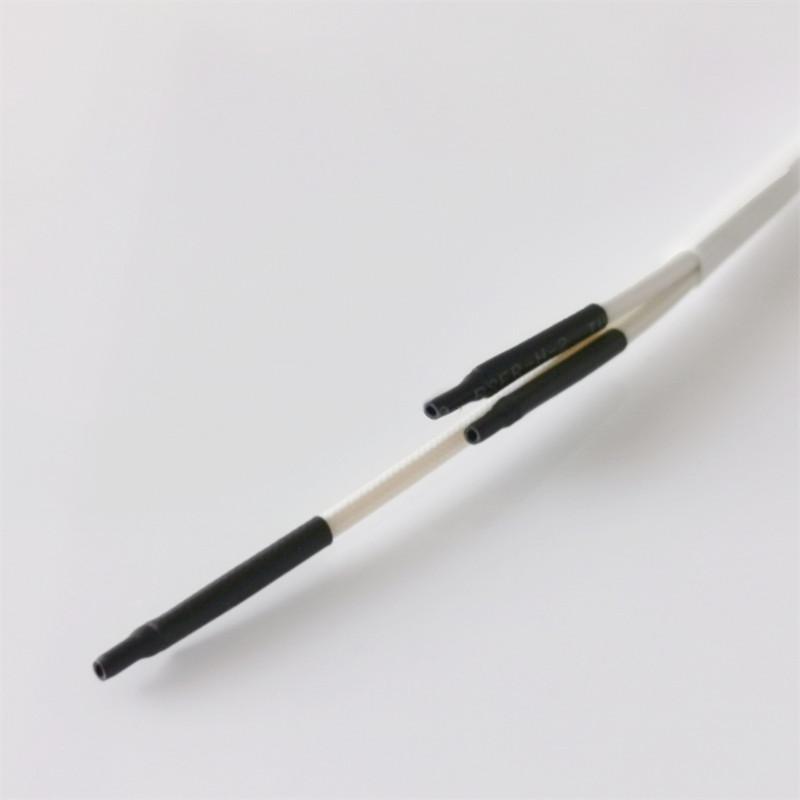

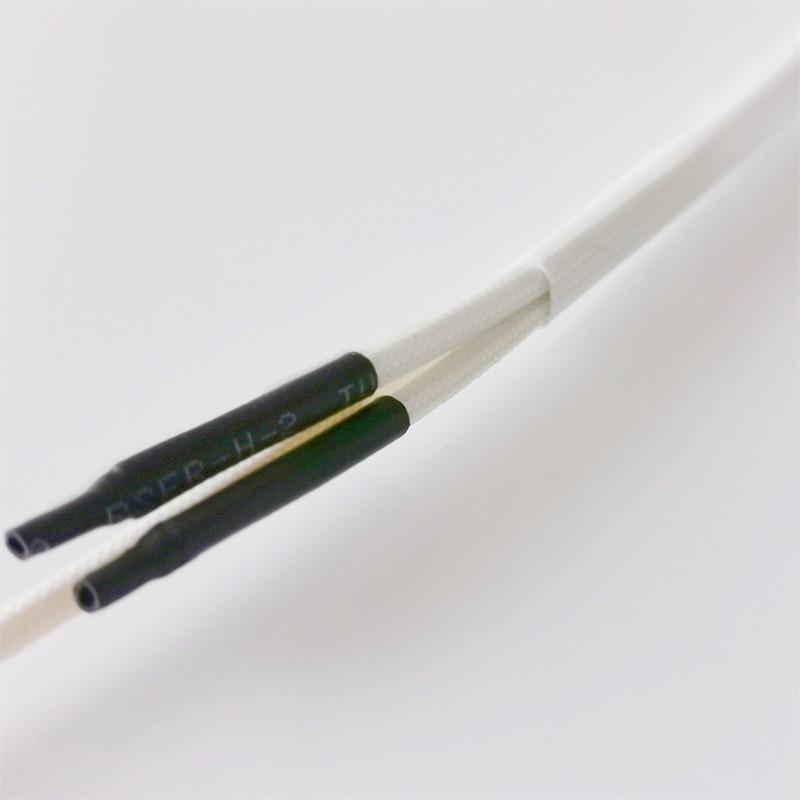

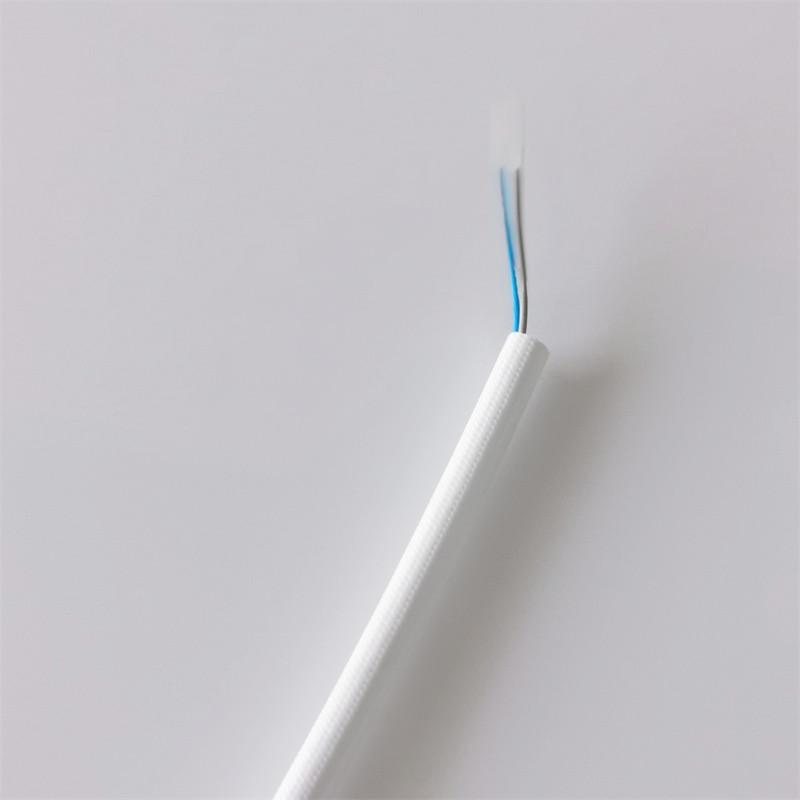

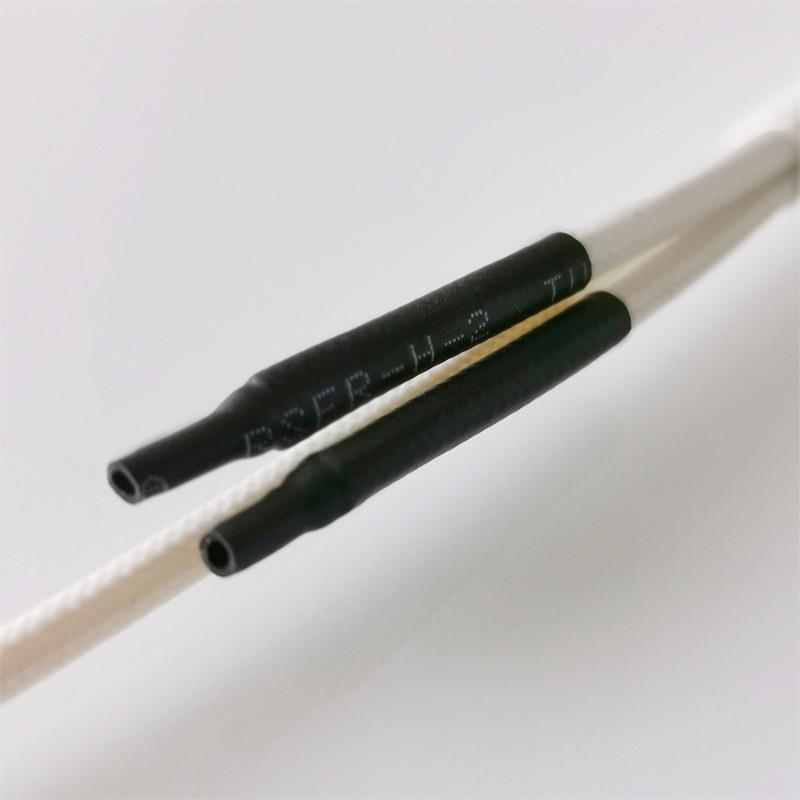

MZ6 PTC Thermistor for Motor Winding

The MZ6 Series PTC Thermistor are used to monitor and protect motor from over temperature. Temperature range is from 60 to 180°C.

PTC thermistor beads with different rated response temperatures can be connected in series as duel, triple or Sextuple .

Key Parameters:

Item	Single	Triplep	Unite
Max.Working Voltage(DC)	25	25	V
Rated Control Temperature Tk	To Customer equirement	To Customer Requirement	°C
Rated Control Temperature TollerenceΔT1	±5	±5	°C
Reproducibility of TKΔT2	±0.5	±0.5	°C
Resistance value at 25°C	≤100	≤300	Ω
Resistance value at TK-5°C	≤550	≤1600	Ω
Resistance value at TK+5°C	≥1330	≥4000	Ω
Resistance value at TK+15°C	≥4	≥12	kΩ
Thermal response Time T_a	≤5	≤5	s
Strength of Electrical Insulation Uis	AC2.5	AC2.5	kV
Max. Controlled Temperature	180	180	°C
Max. Storage Temperature	180	180	°C
Min Storage Temperature	-40	-40	°C

Typical Applications

Motor protect

Power Device

Advantages:

Meeting standard DIN 44081/DIN44082

Short response time and easy installation

Typical Sizes:

RT Curve for single bead( multiple the resistance accordingly for mutiple beads in series):

Ordering Code:

Flexible Custom Design &Development Welcomed. Contact us now for more details or for your sensing solutions
