Robust PT Temperature Sensor with Crimped Metal House

Focusens MZP-4 series oven temperature sensor are specifically designed for high temperature household and commercial ovens. The craft and materials enable it workable for high temperature upto 500’C.

With flexible design and custom in house capability , we have full ranges of oven temperature meeting different electrical and mounting requirements.

Brand:
Focusens
Item NO.:
MZT
Order(MOQ):
3000
Product Origin:
Hefei,Anhui,China
Shipping Port:
Shanghai / Ningbo/Hefei/Shenzhen
Lead Time：
4 weeks
Sensing Component:
PT100 /PT500 /PT1000
Working Temperature:
-50- 300’C/ -50-500’C Max
Thermal Time:
10 seconds around (in water)
Hi-Pot:
1250V 1mA 1minute

Inquire now

Parts Selection Guide

New Products

Product Detail

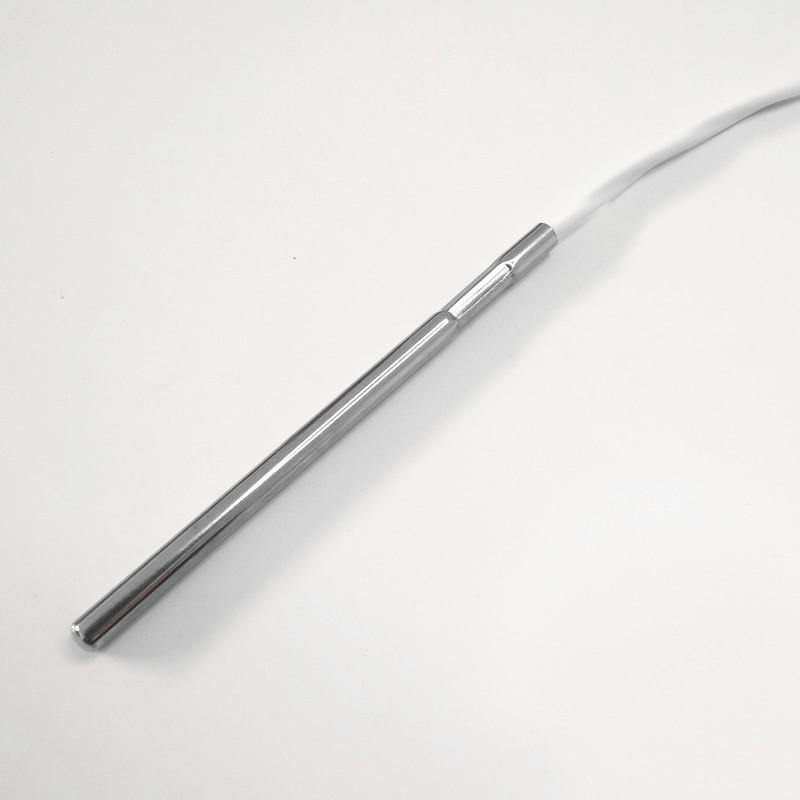

Robust PT Temperature Sensor with Crimped Metal House

The MZT Series PT RTD Temperature sensor using high reliable Platium resistor as sensing component. All the Material and craft are reliable for long run working under high temperature upto 300'C. PT element PT100, PT500, PT1000 or Ni120, Cu50 are available , class A B and BB amoung choices according to demands.

Key Parameters

Probe Material	Food grade SUS304 / SUS316	Wire Layout	2 wires/ 3 wires
Hi-Pot	Min.1250V 1mA 1 minute Higher Voltage available on request	Cable Material	Teflon/ Fiber Glass
Insulation Resistance	DC500V min.100Mohm	Protection Tube	Fiber Glass
Precision of class A	±(0.15+0.002ItI)	Sizes	On request
Precision of class B	±(0.3+0.005ItI)	Connector	On request

Typical Applications

Household and commercial Ovens
Food process Equipments
High Temperature material treatment Equipments

Advantages

Size and Materials designed for easy and flexible installation
Good stability and coherence, high durability
Standard and reliable temperature resistance character
High Temperature capability of different temperature grade eg.300℃,500℃
Safety dielectric according to different standard: 1250V/ 2000V /3000V 1mA 1minute
Safety for Food contact: ROHS, REACH,FDA, PAH compliant

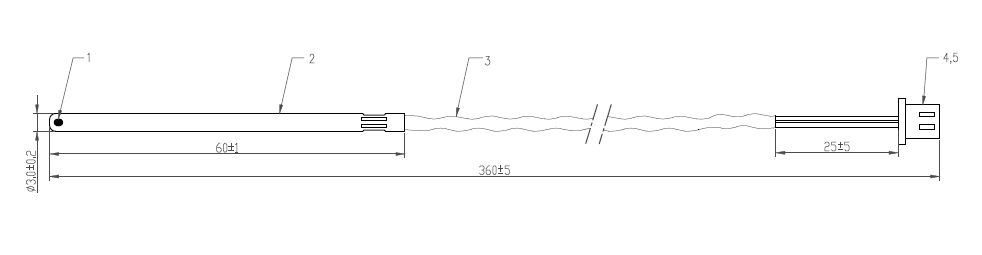

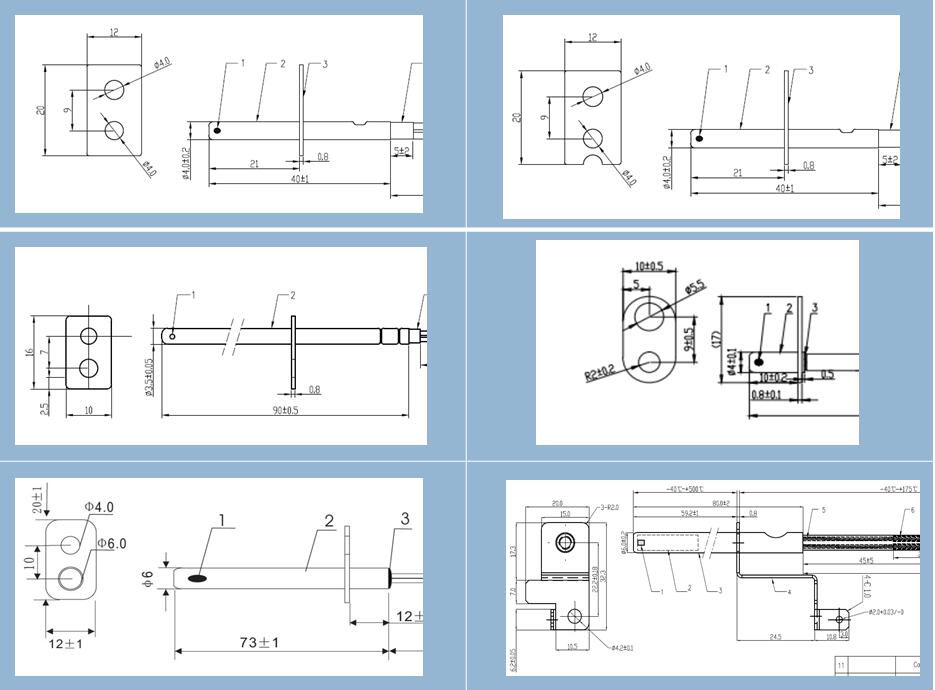

Typical Sizes

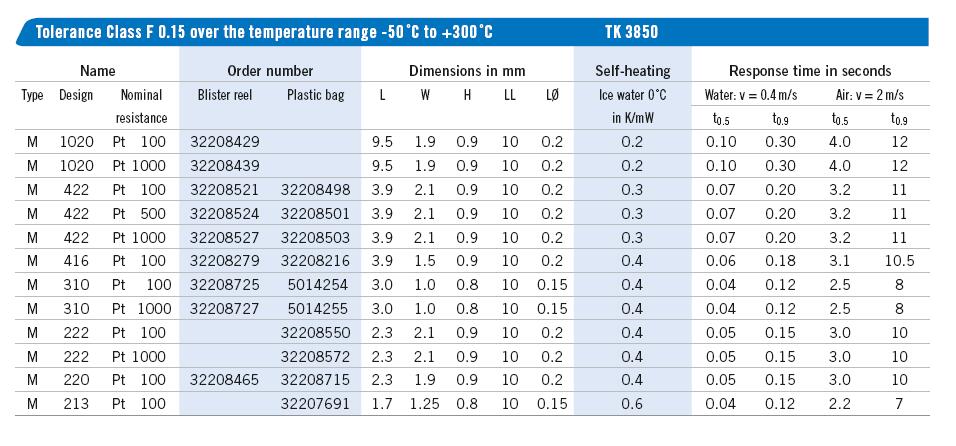

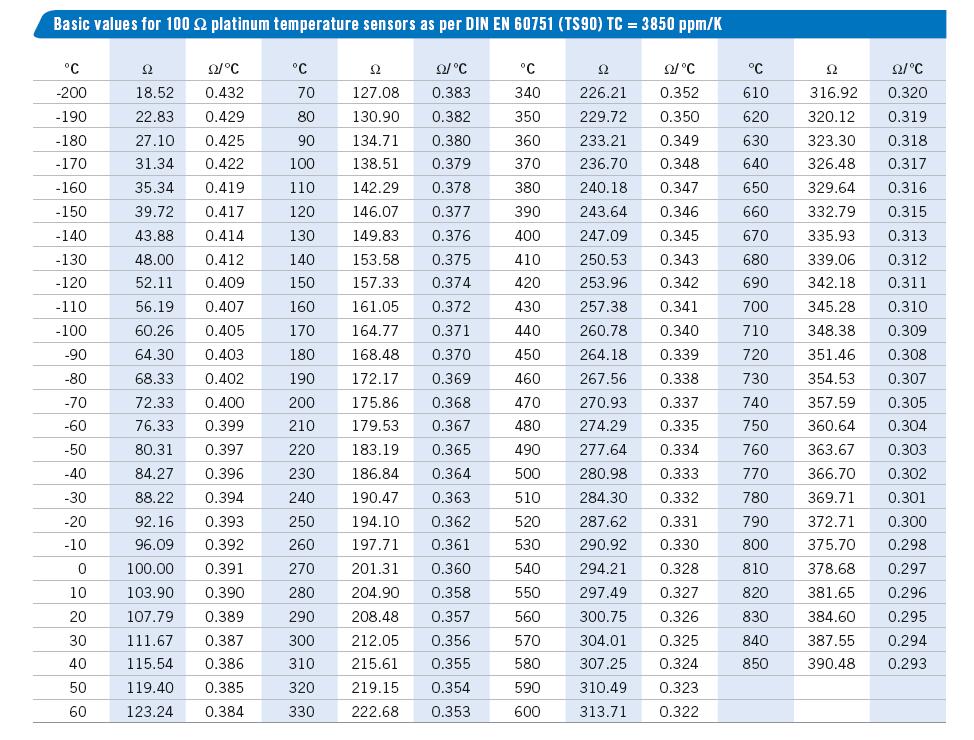

Standard RT and Tolerance

Welcome contact us for more details or for your sensing solutions
